CNC turning

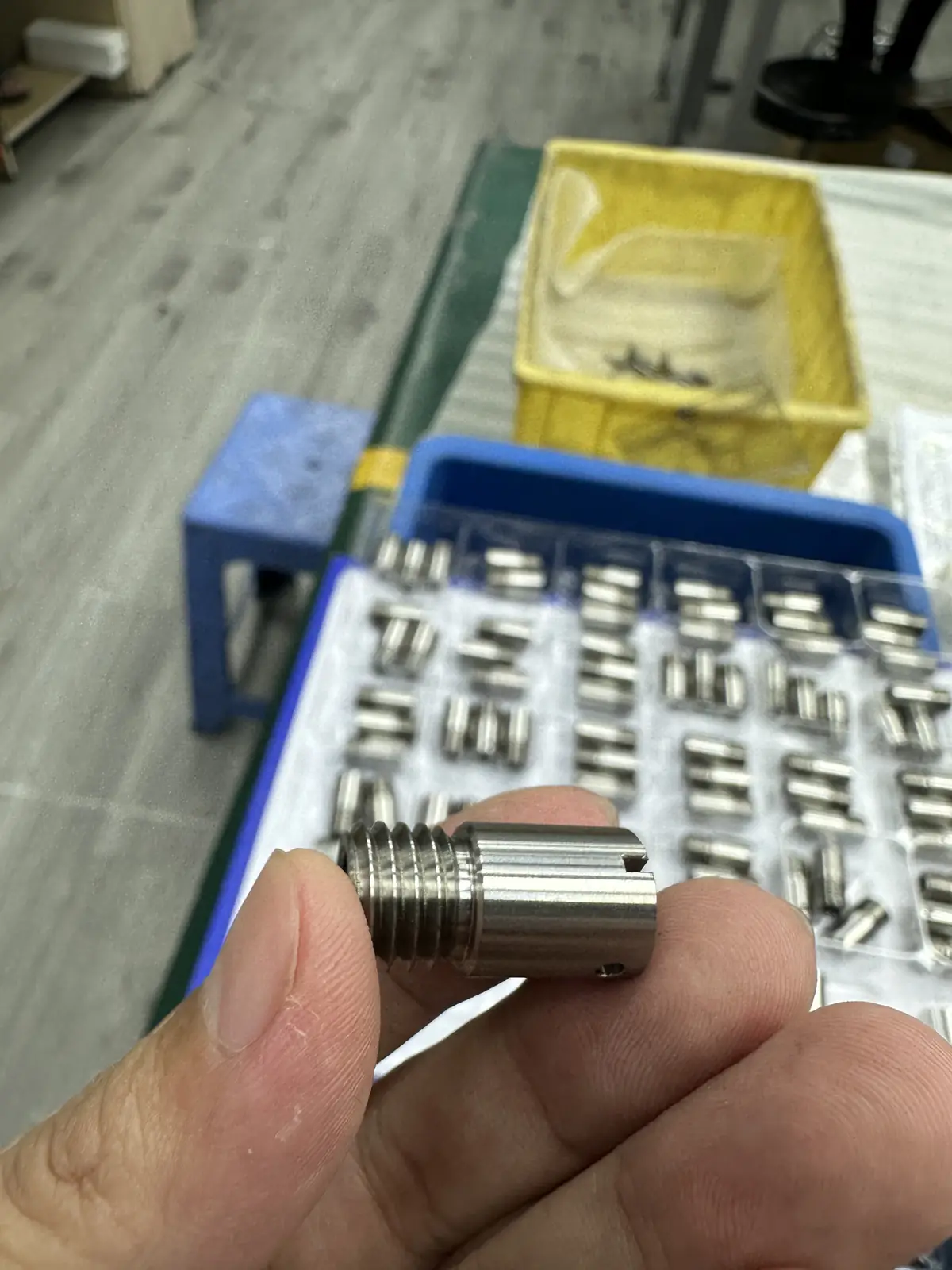

Threaded bushing, slotted end
Threaded bushing | External thread, slotted end, cross hole | CNC turned | Inspected by batch.
CNC turning

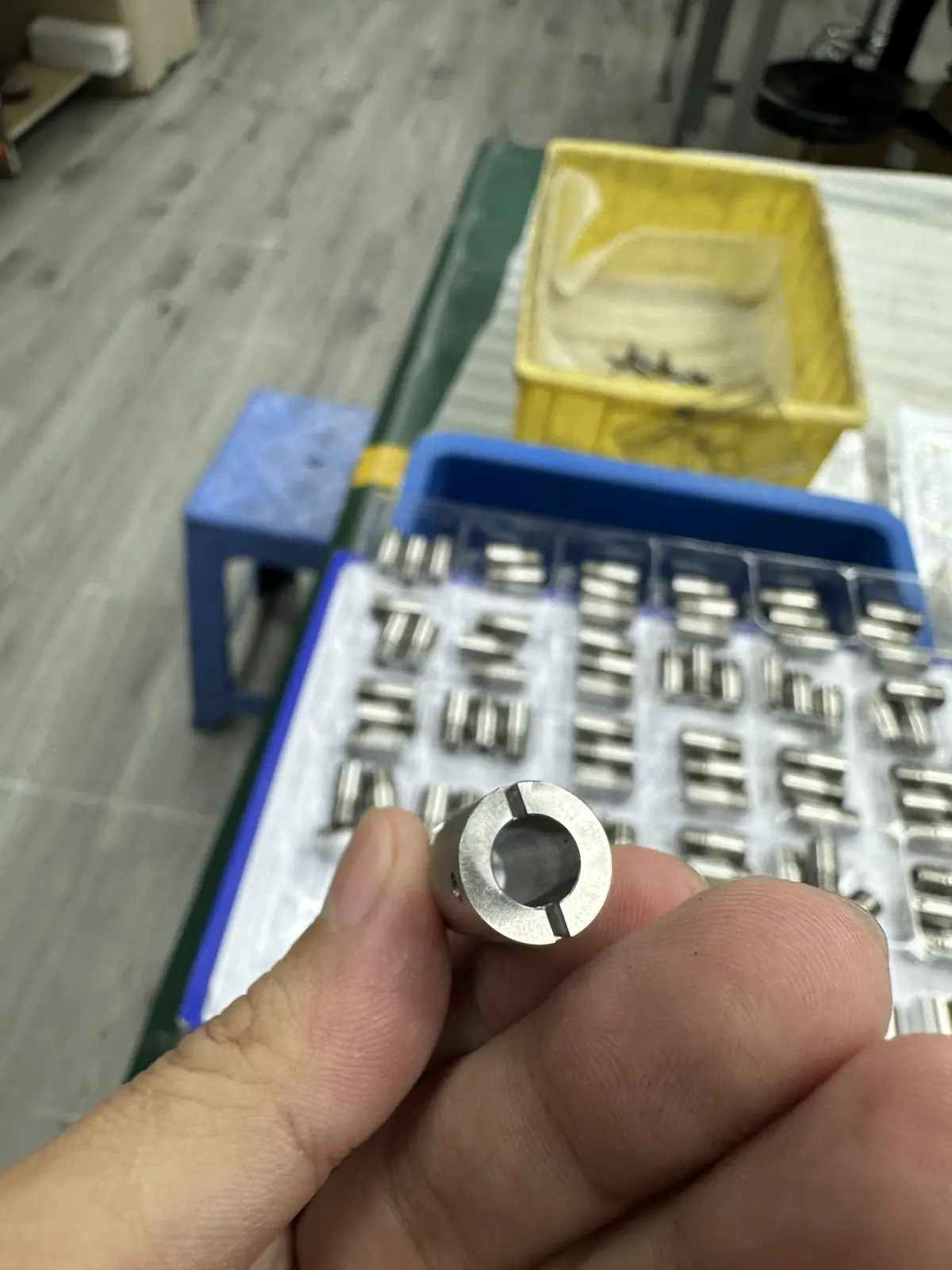

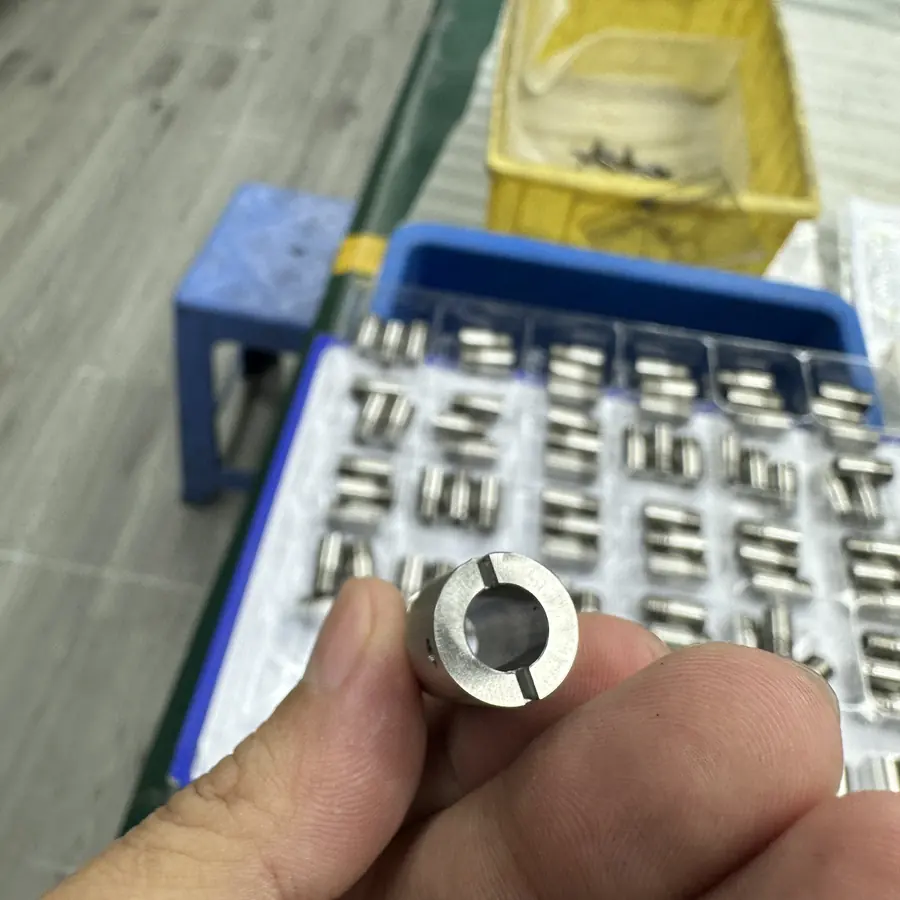

Slotted sleeve, bore end
Sleeve | Through bore, two slots on end face | Bore and outside diameter machined in the same setup.
CNC turning

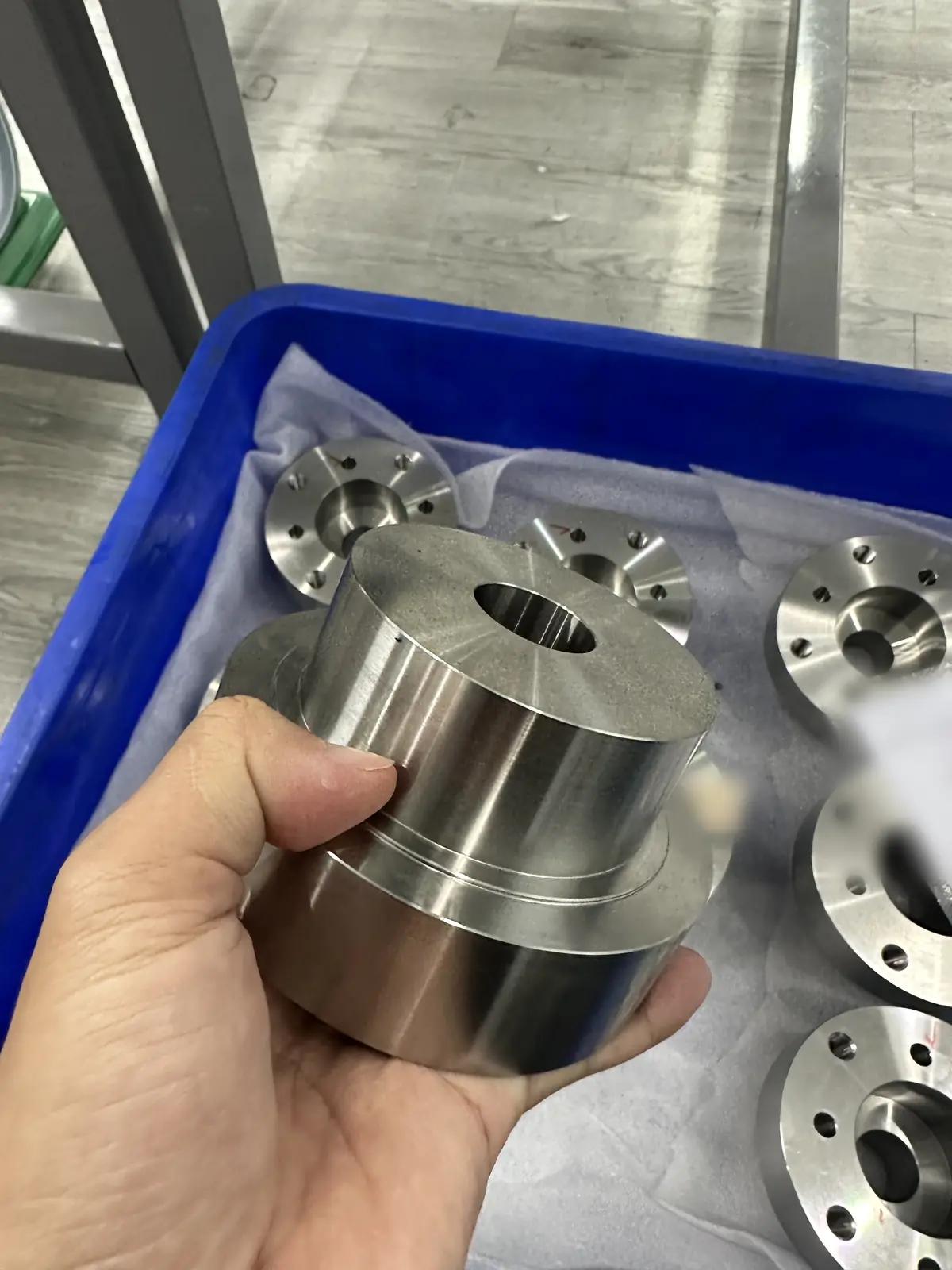

Stepped flange hub
Stepped hub | Centre bore, relief groove | Flanges: bolt circle, counterbored centre bore.
Mould tooling

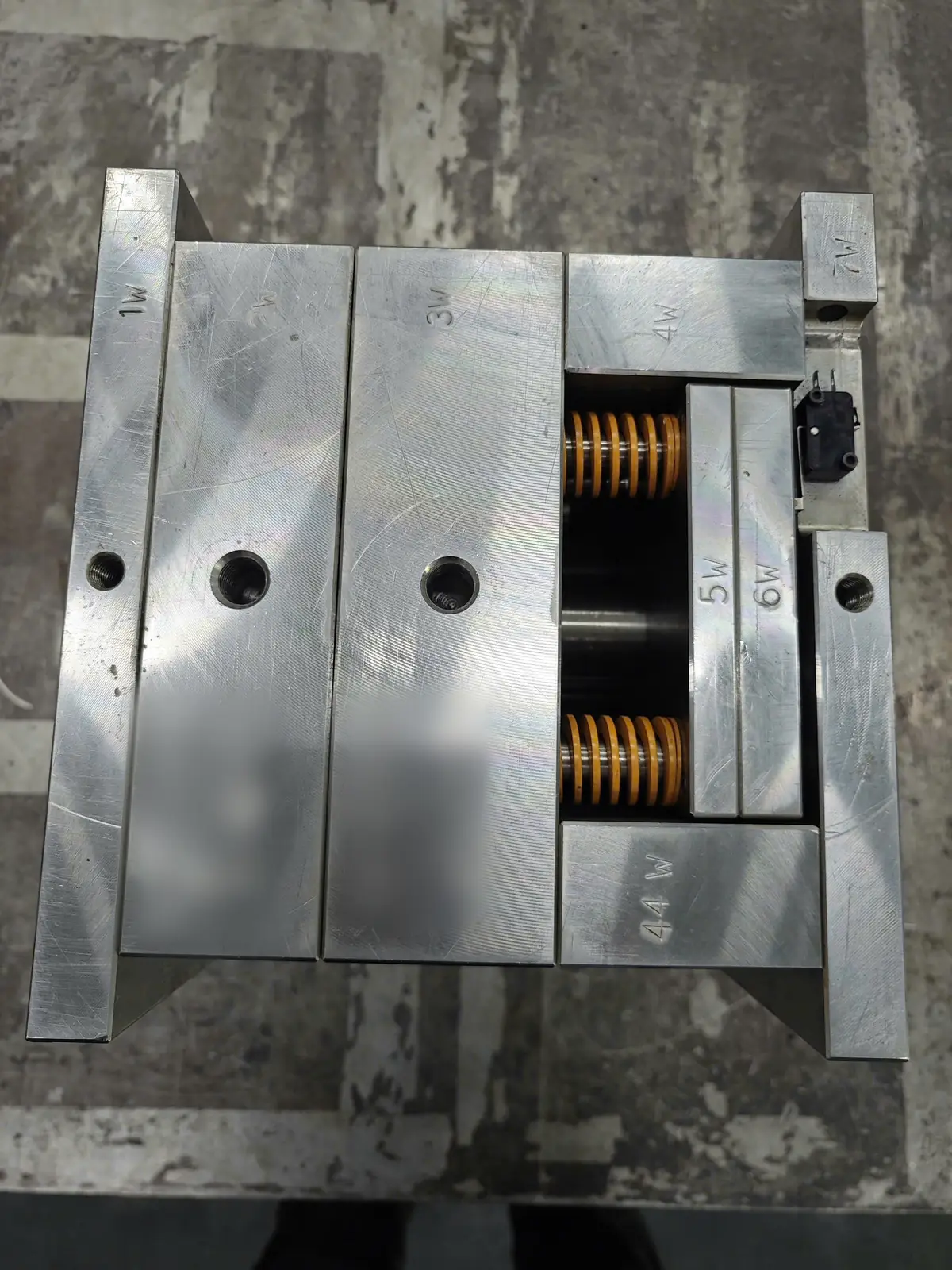

Injection mould tool, assembled
Plastic injection mould | Mould plates, slides, springs, limit switch | Milling, grinding, fit-machined holes | Customer marking blurred.

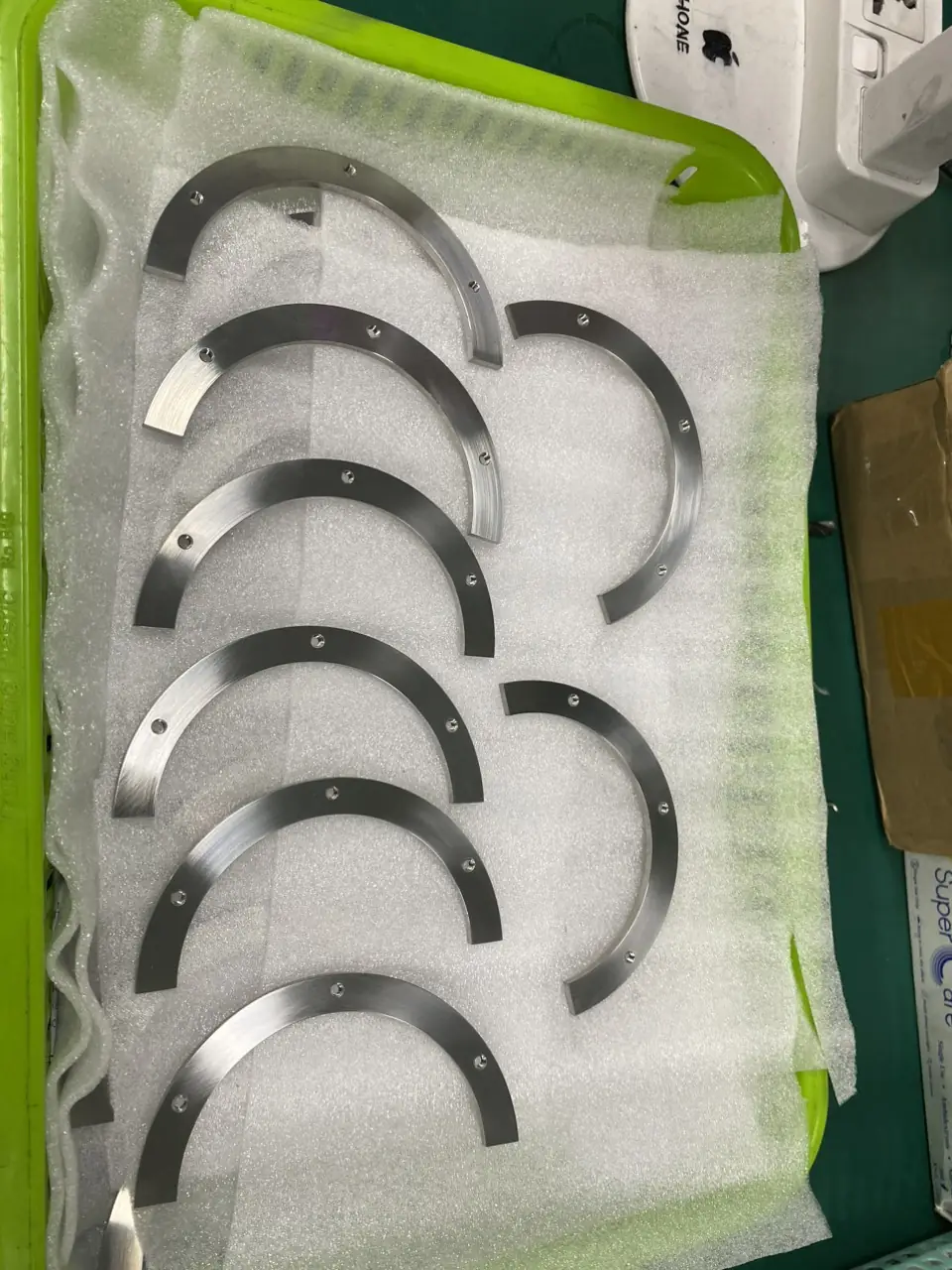

CNC milling

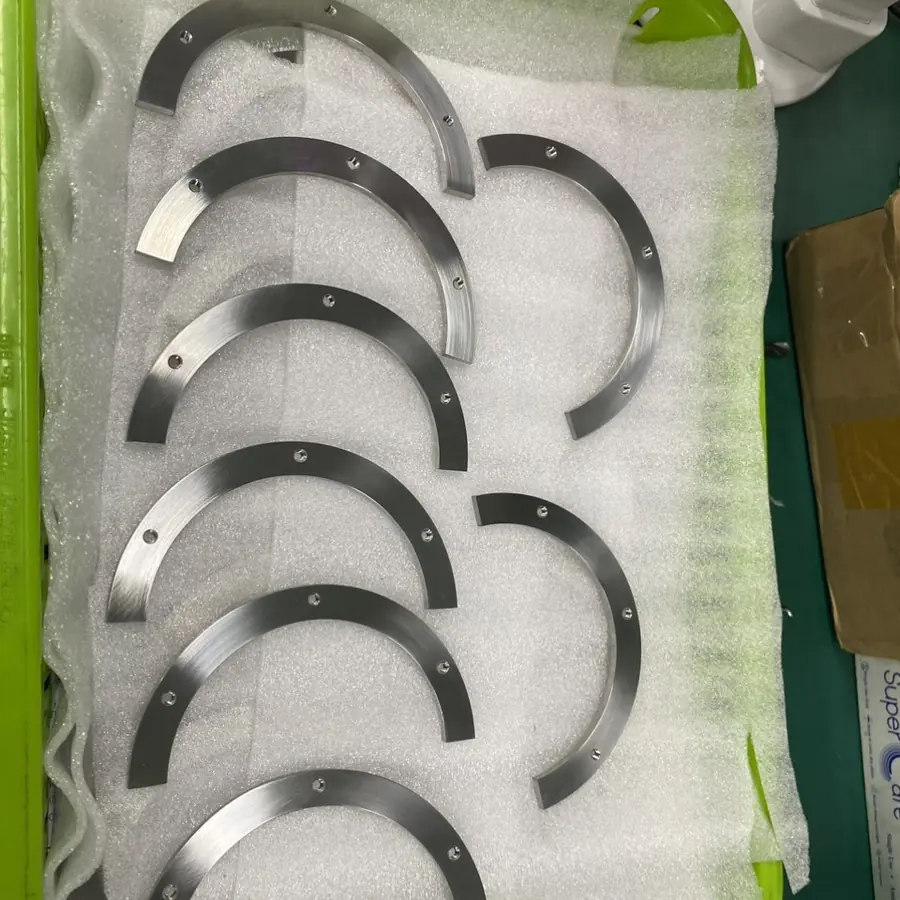

Arc segments, drilled edge holes
Arc segments | Machined as a set; small holes along outer edge | Packed on foam sheet.
CNC turning

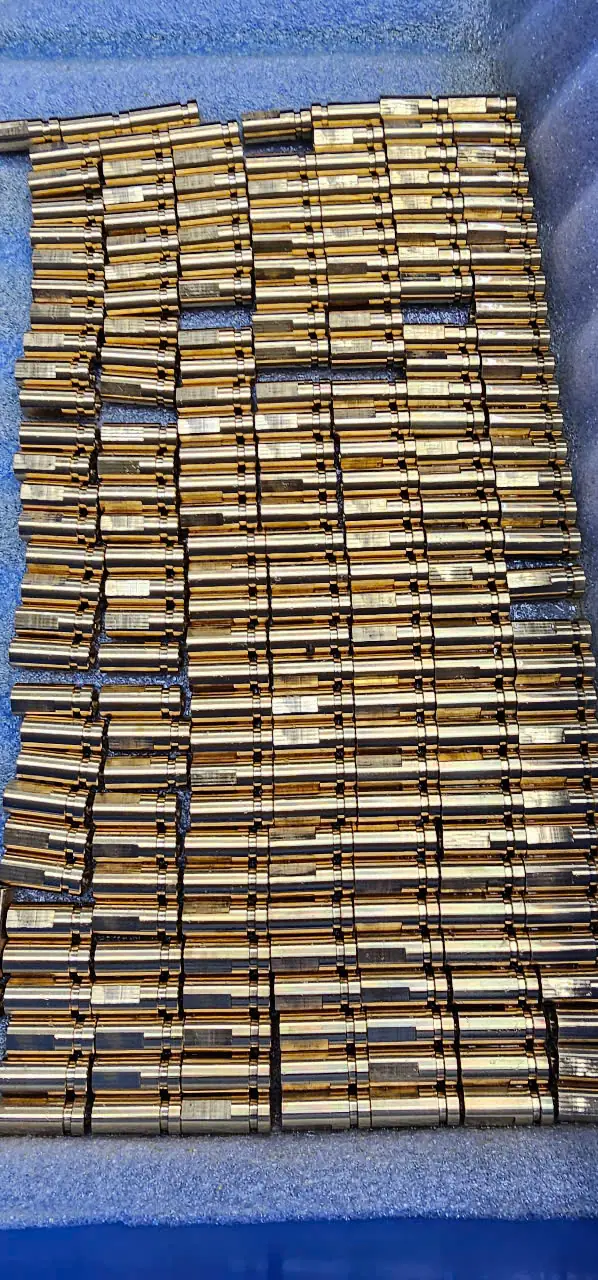

Gold-plated contact pins, high volume
Stepped pins | CNC turned, gold-colour finish | Counted and visually inspected by batch.
CNC turning

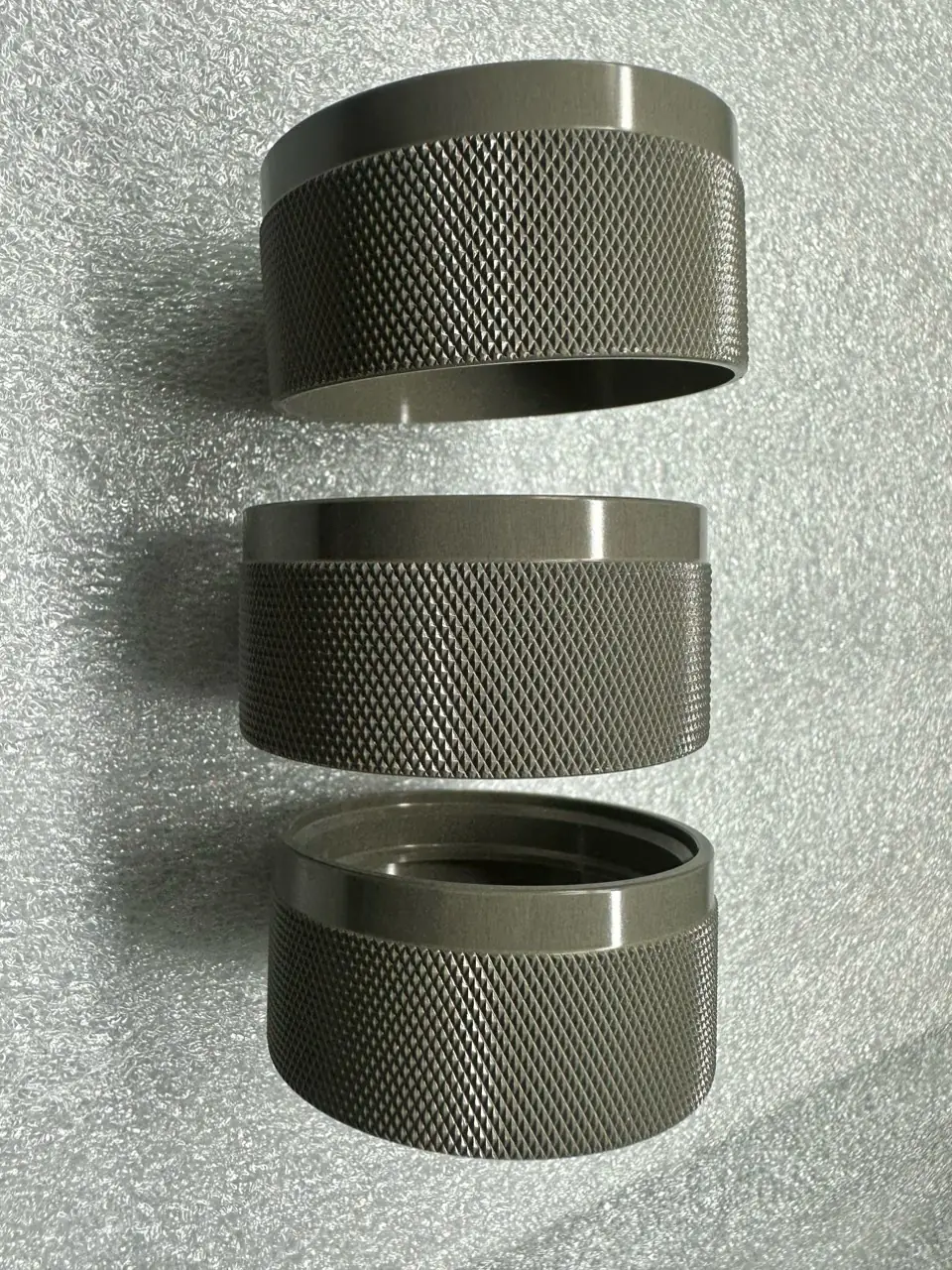

Knurled rings
CNC turned rings | Diamond knurl; plain band at edge.
CNC milling

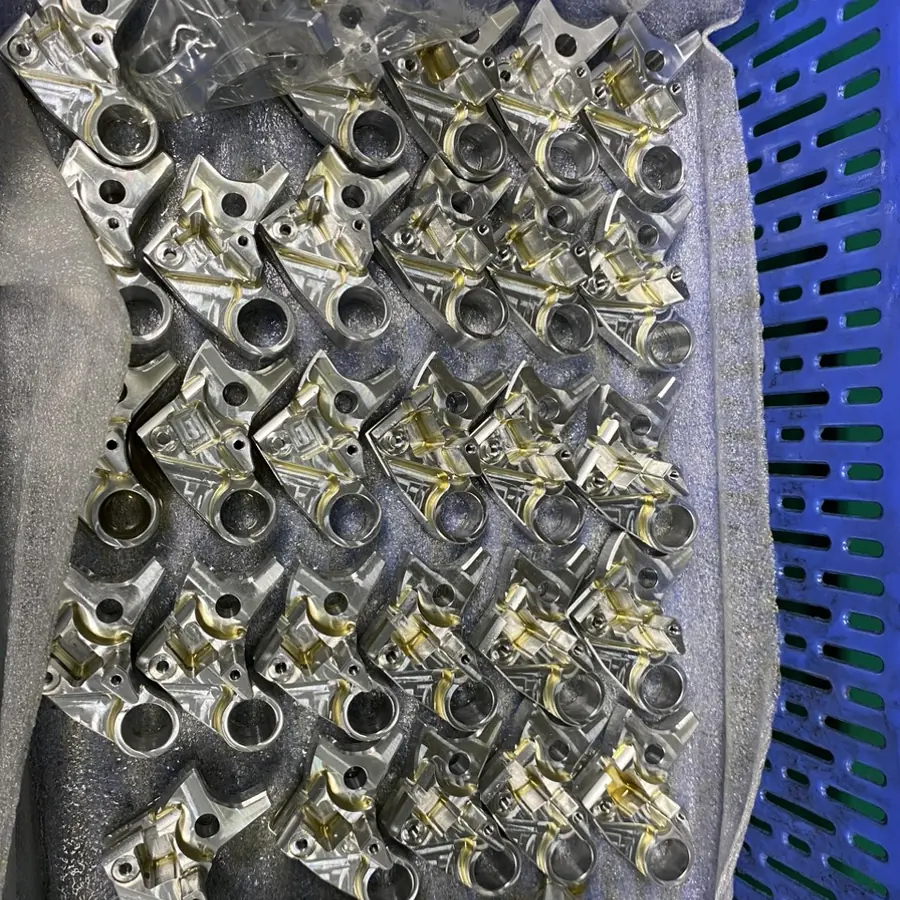

Multi-face milled brackets, batch
Brackets | Multi-face milling, pockets and holes | Each part bagged separately.
Screws & pins

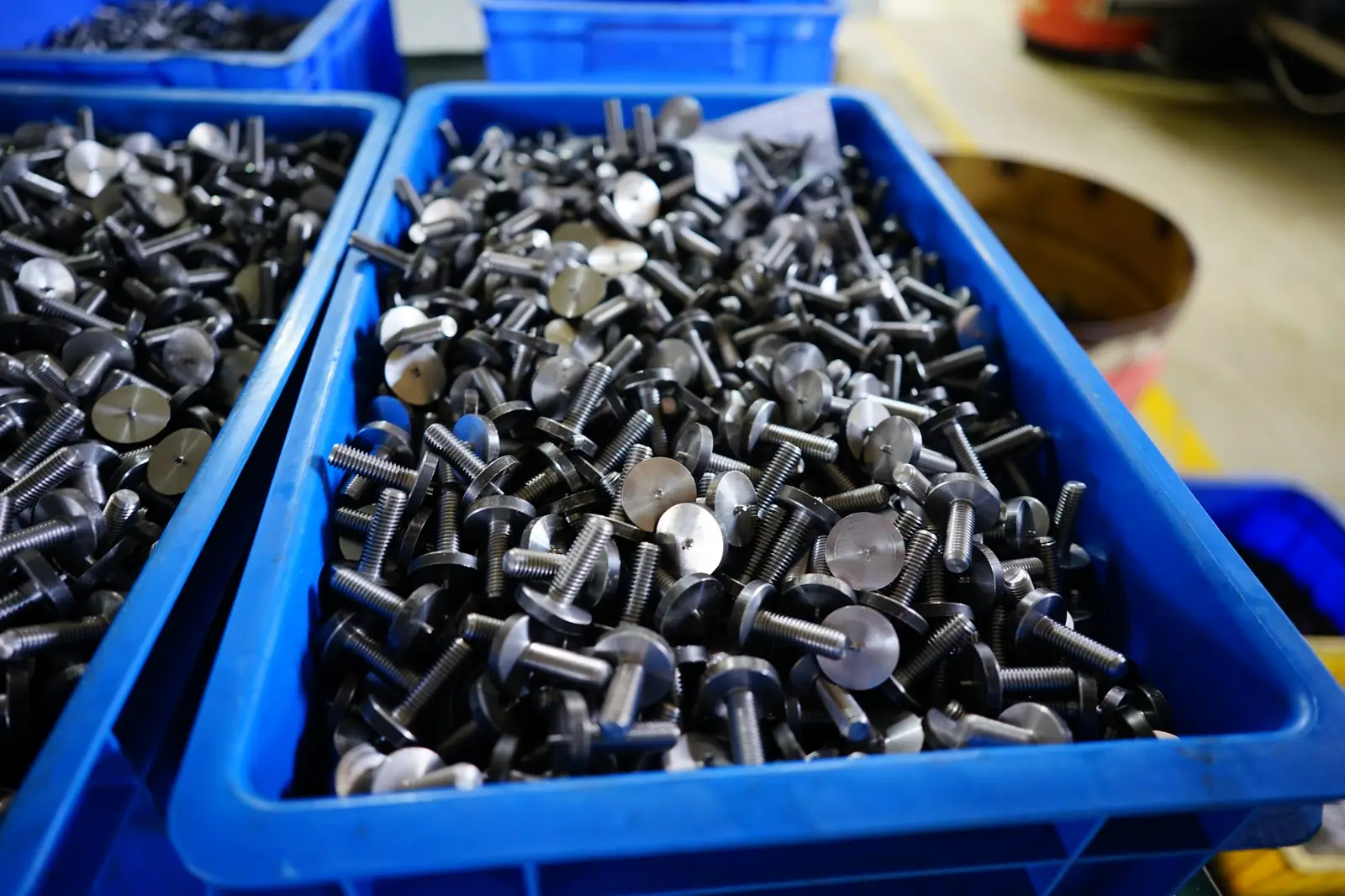

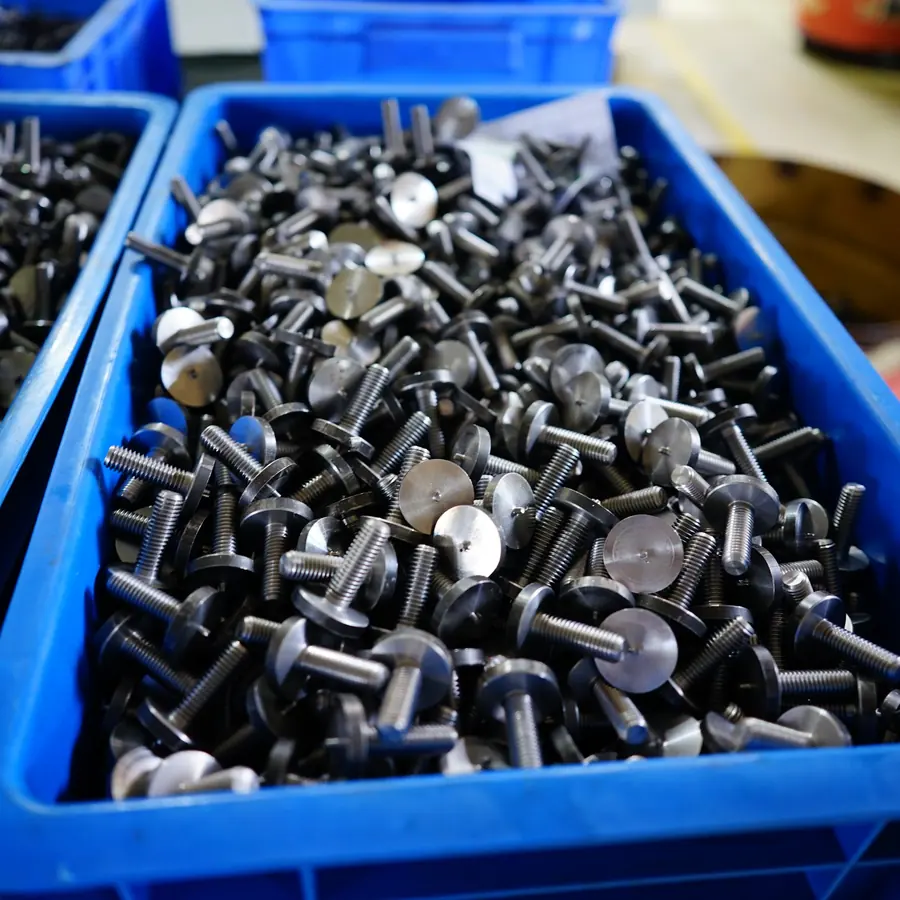

Flat-head screws, turned and threaded
Special screws | Wide flat head, threaded shank | Head face and thread turned per drawing.
Screws & pins

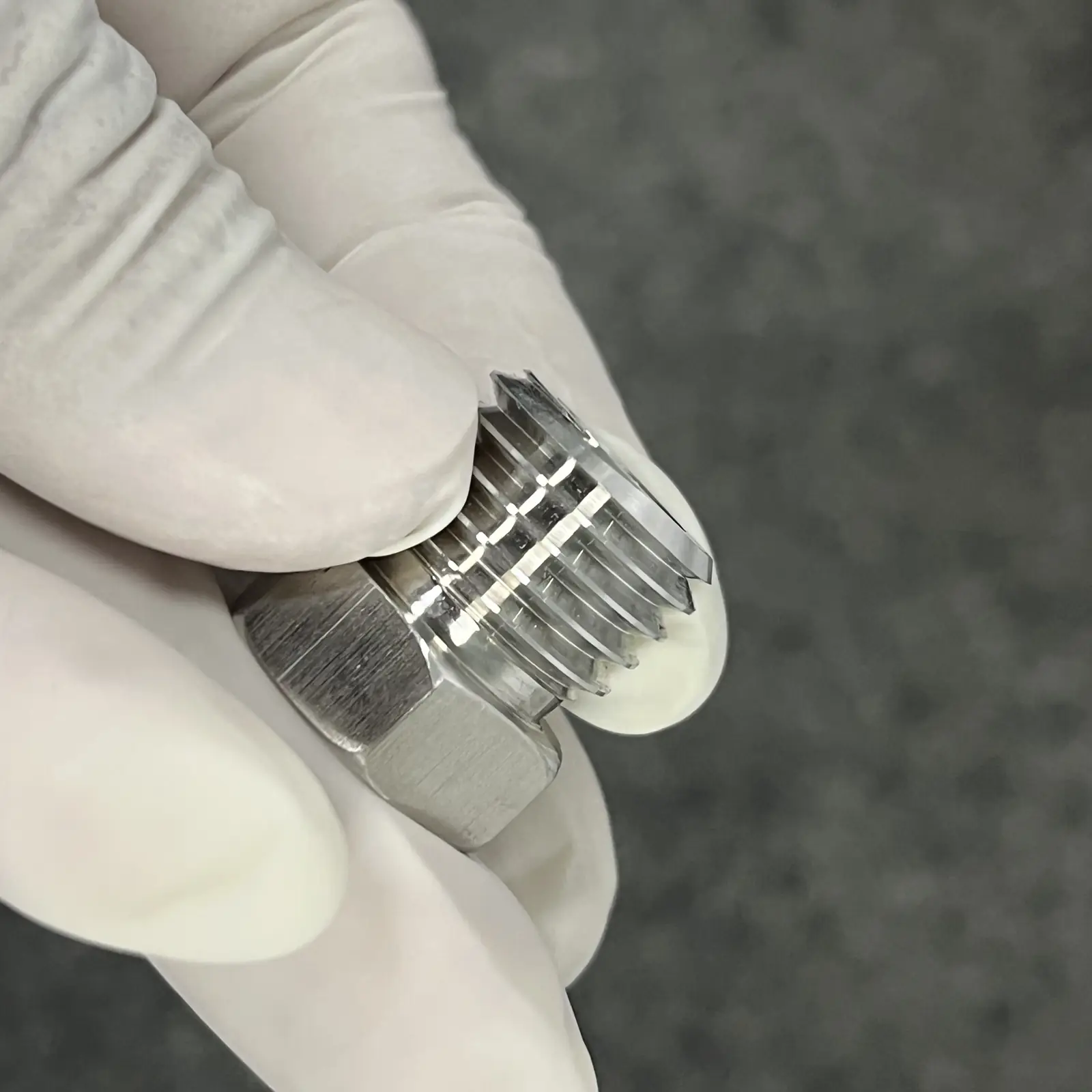

Hex threaded plug
Threaded plug | Hex head, fine external thread | Chamfered and deburred.
Welding & sheet metal

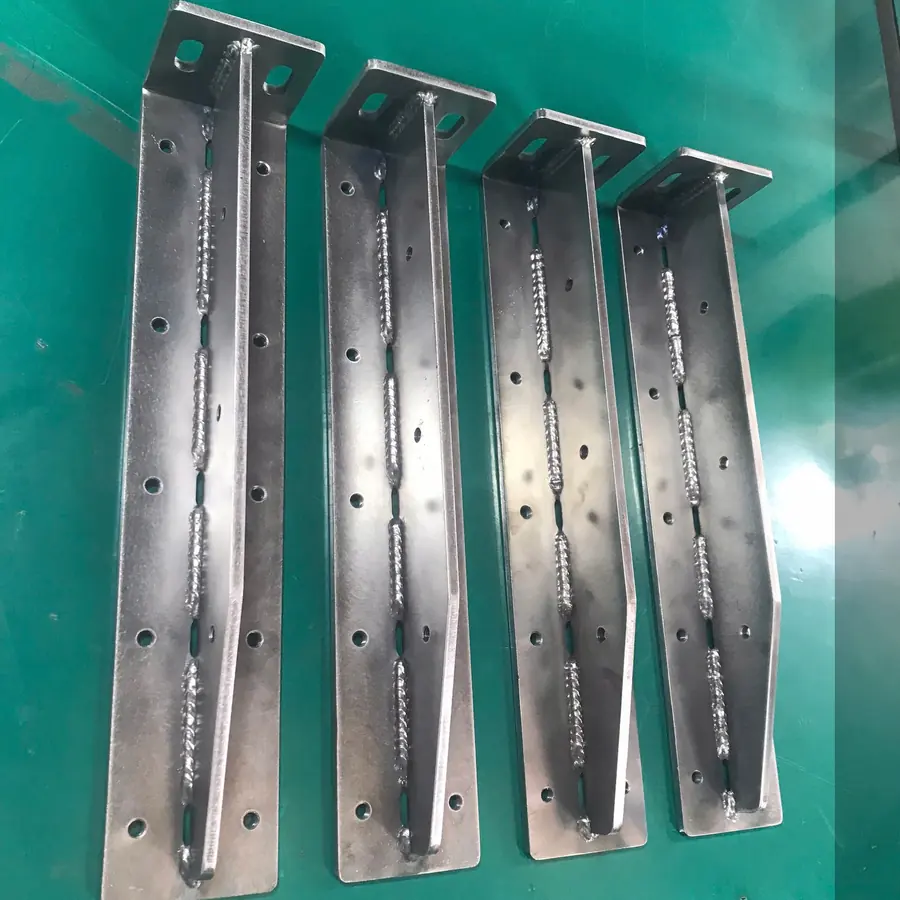

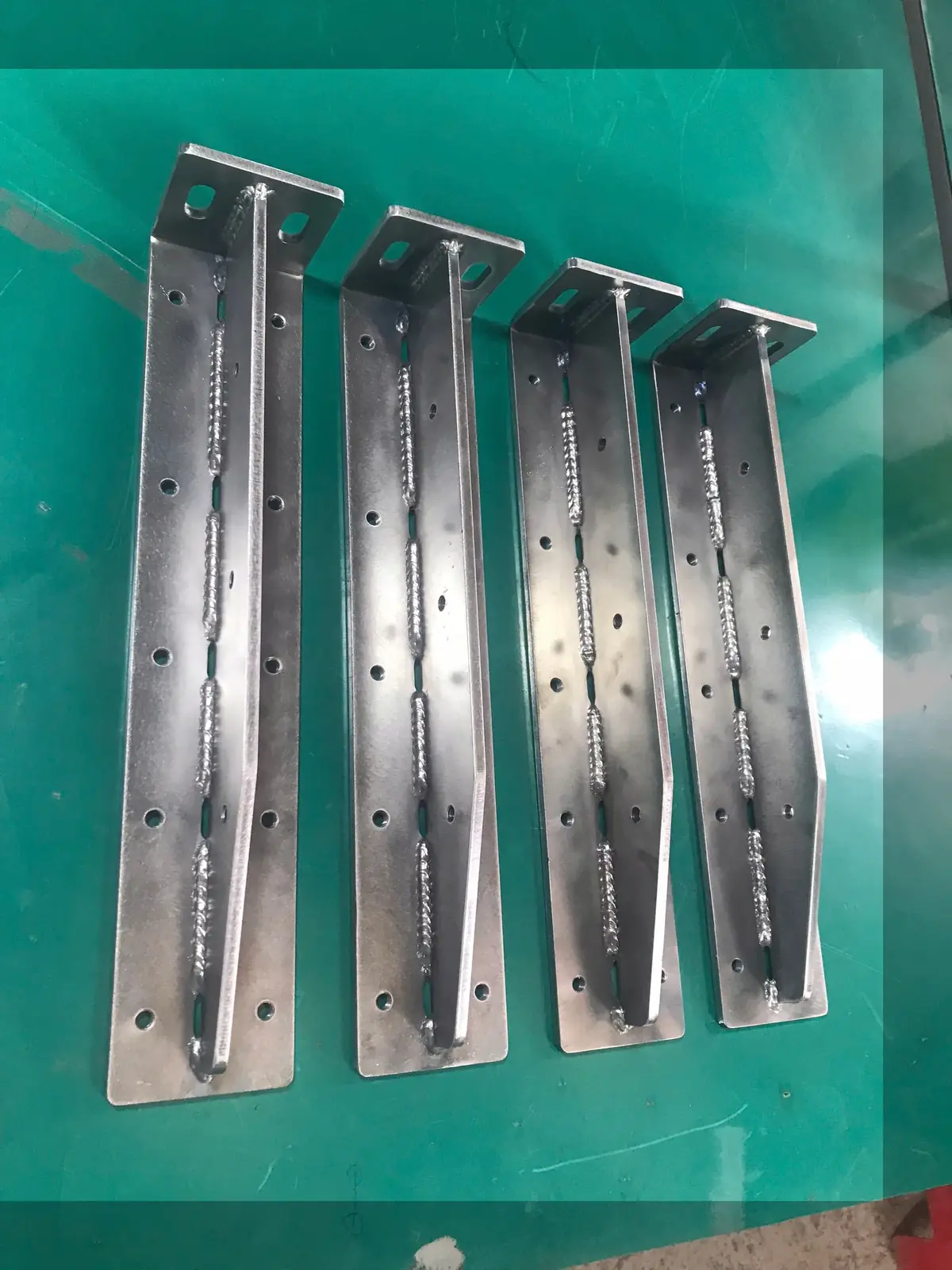

Welded support rails
Support rails | Cut/bent plate; drilled base plate; welded rib; slotted mounting tab | Stitch welding.

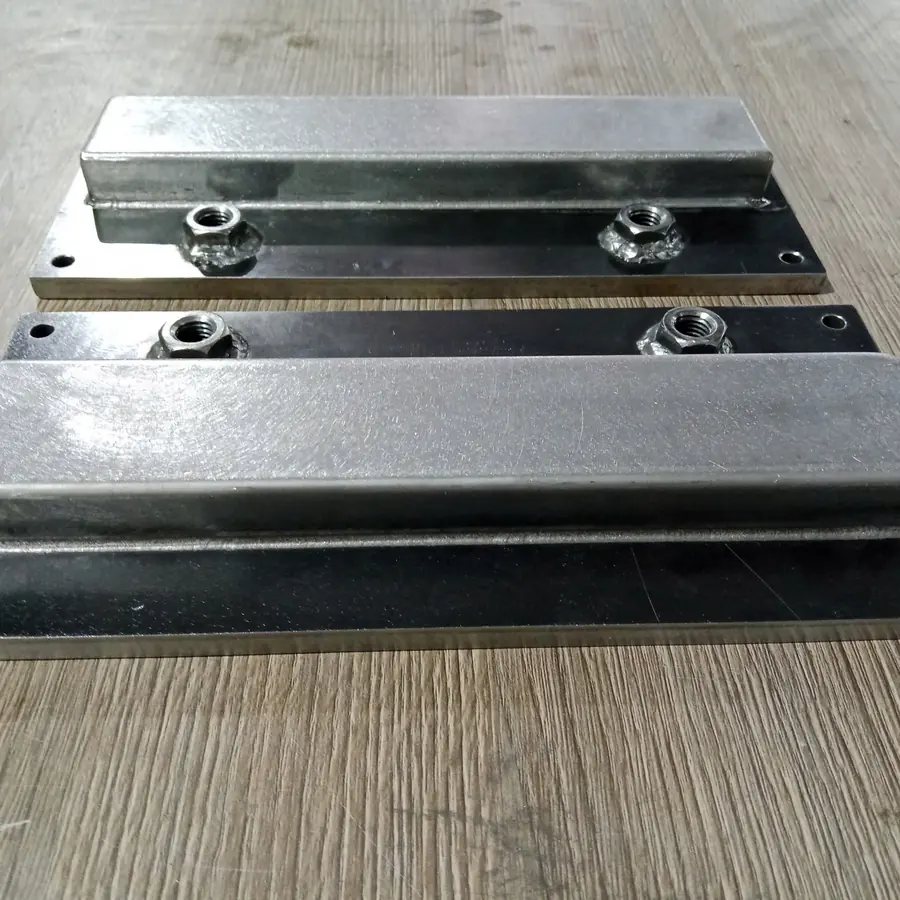

Welding & sheet metal

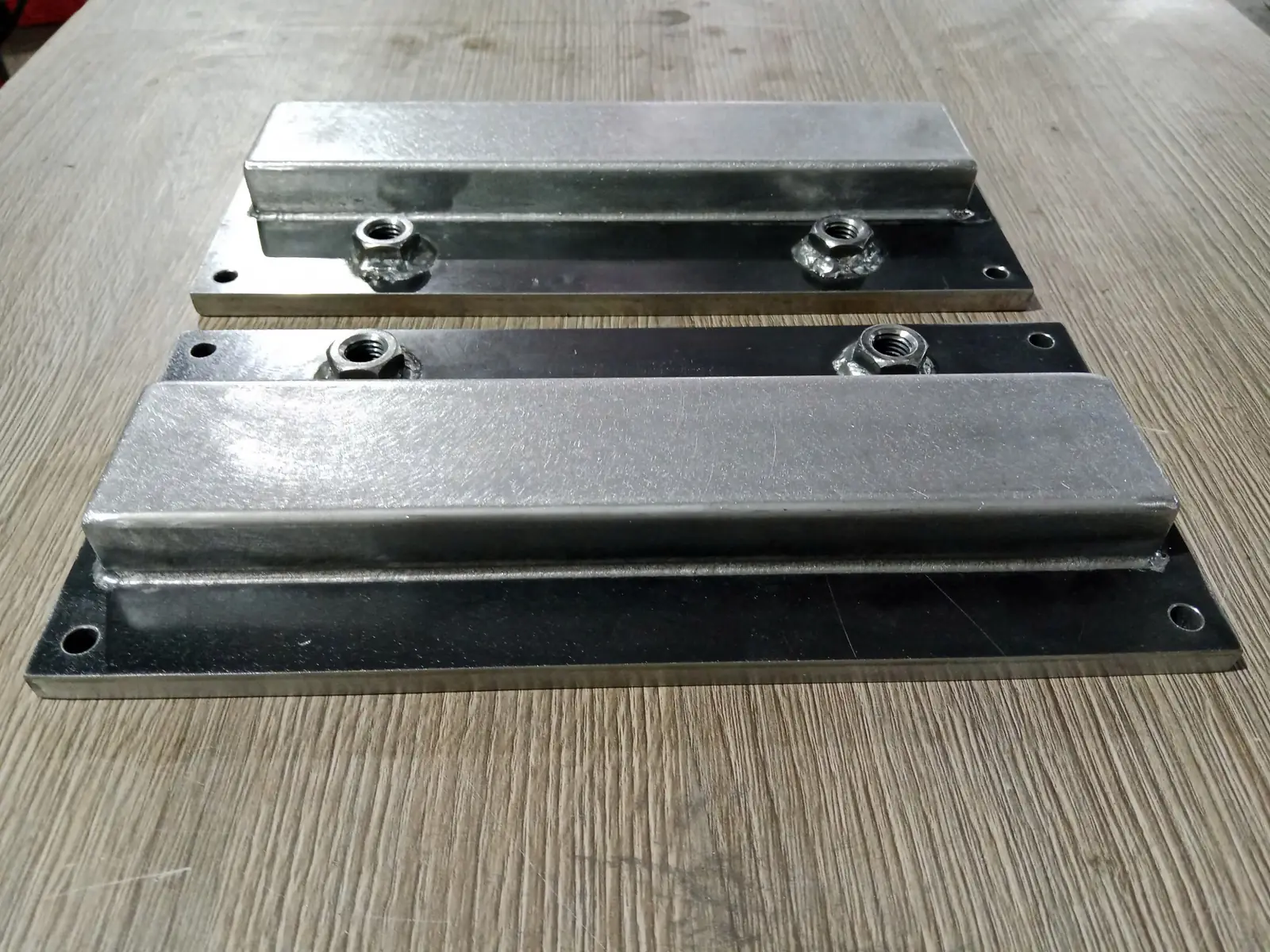

Mounting plates with weld nuts
Welded base plate | Box section, two weld nuts, four corner holes | Made in pairs.
CNC milling

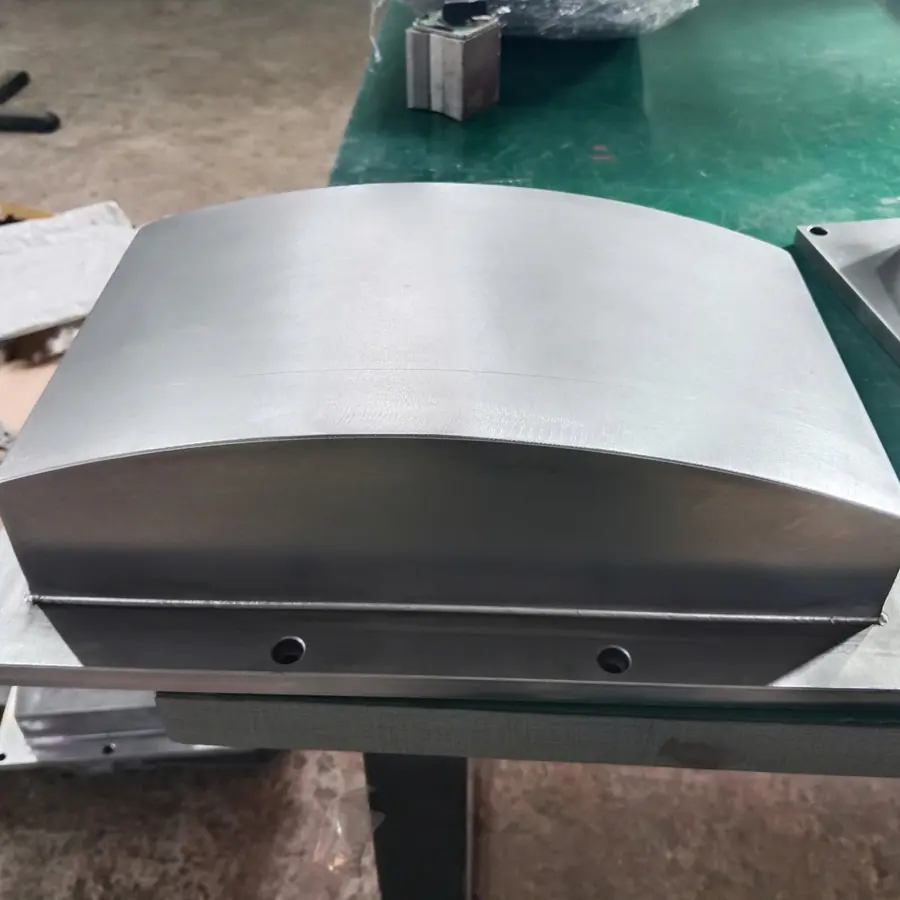

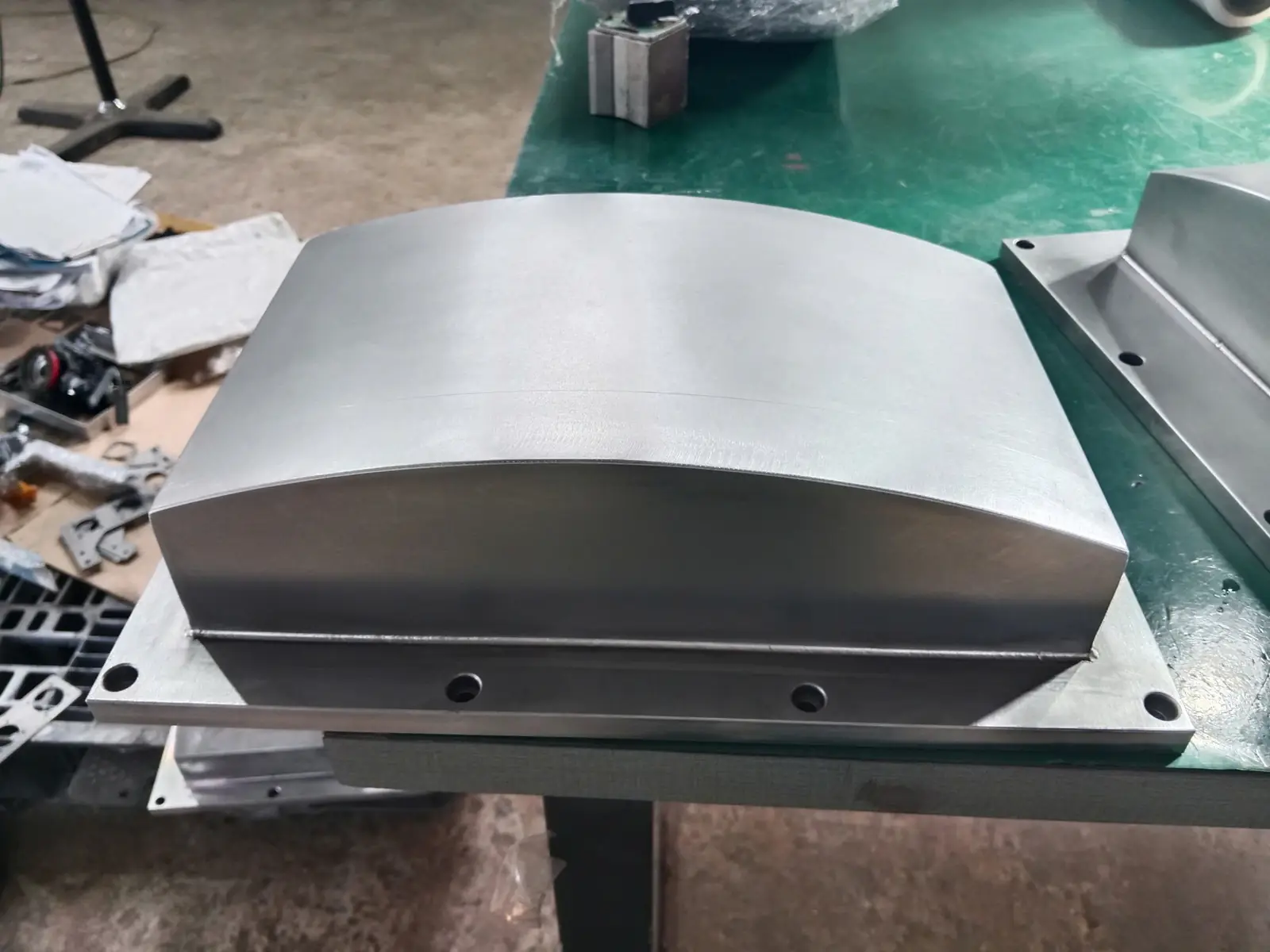

Housing, curved top
Housing | Curved top face, flanged base plate, corner holes and side screw holes.
CNC turning

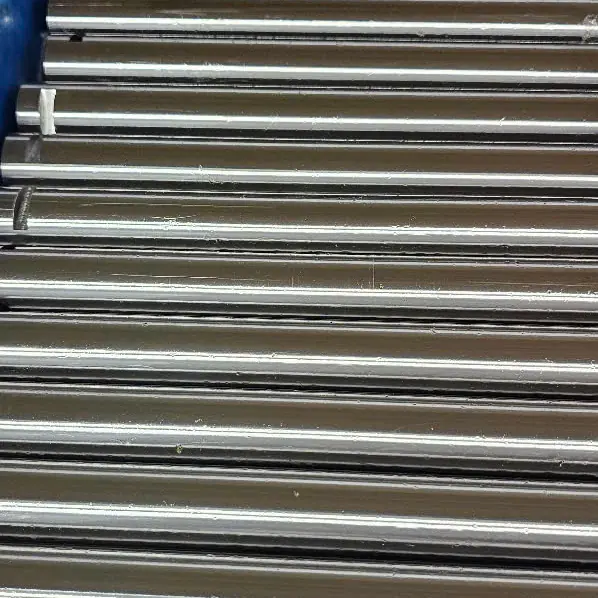

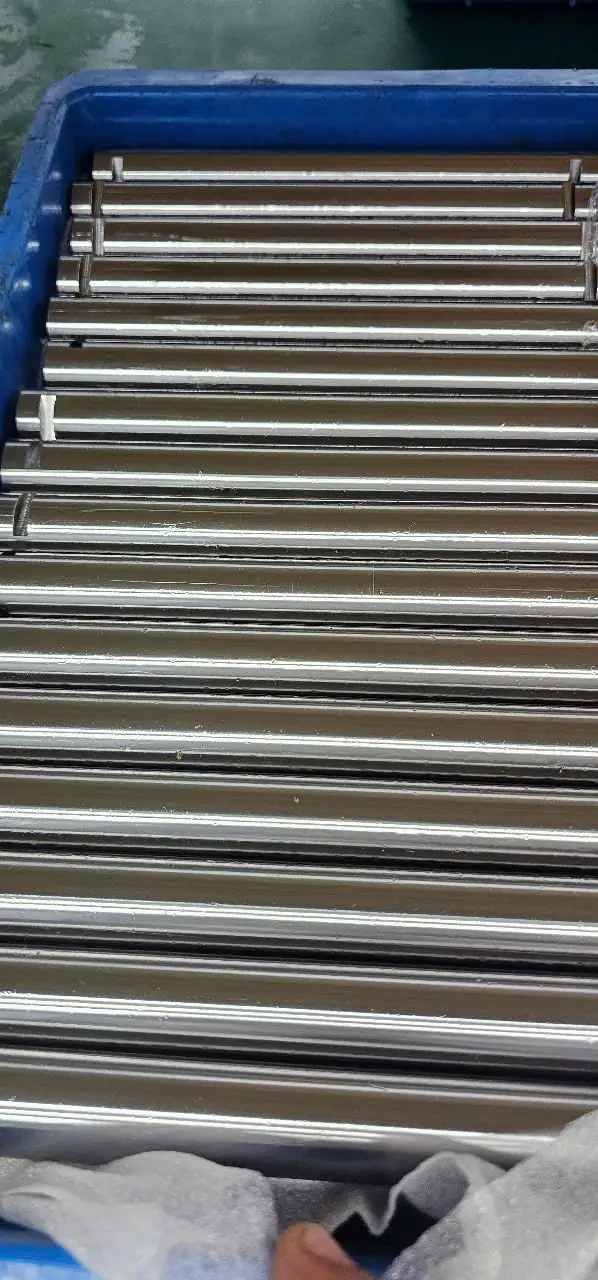

Turned shafts, batch
Long shafts | CNC turned by batch | Laid side by side in a lined crate.

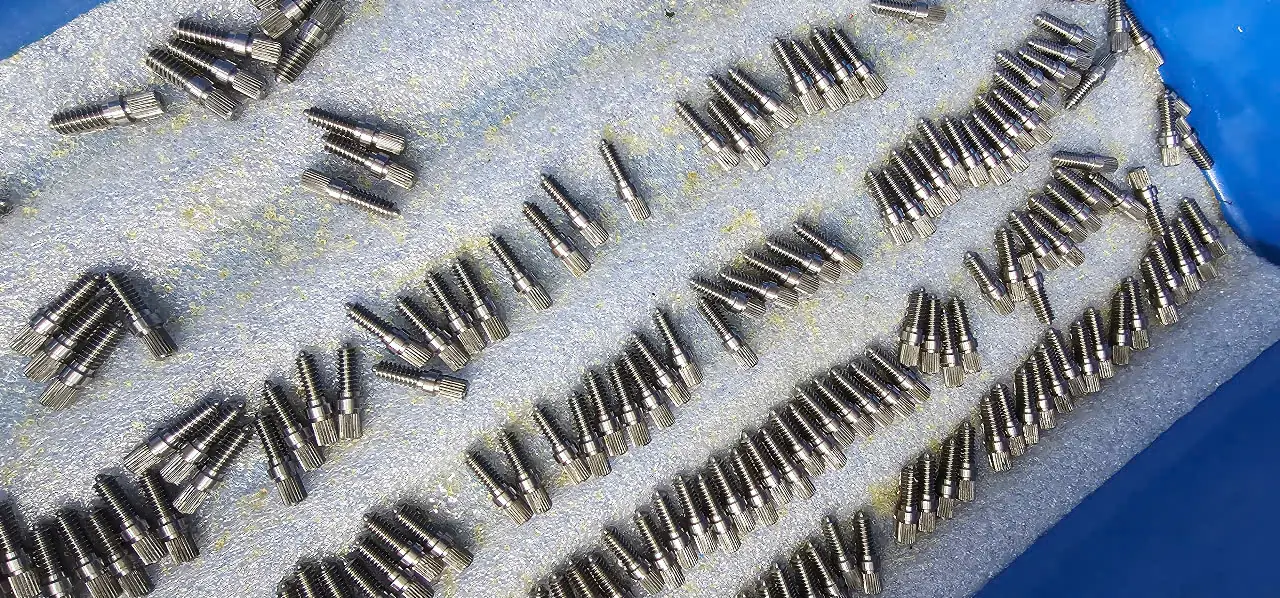

Screws & pins

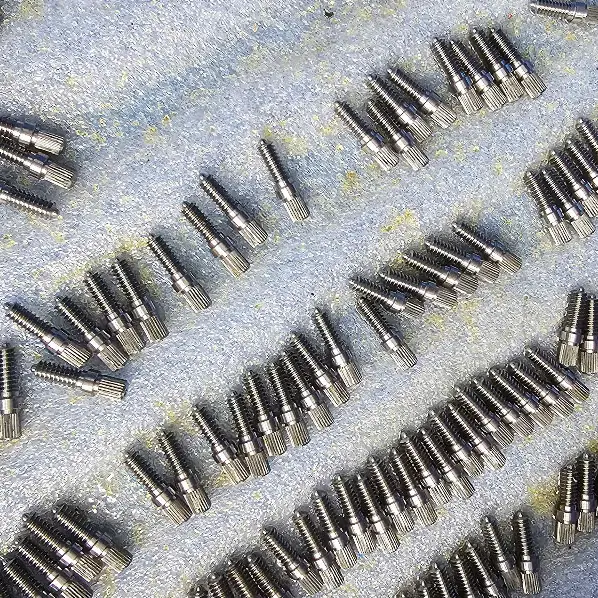

Threaded pins, batch run
Pins | Thread on one end, plain shoulder on the other | CNC turned by batch | Packed on foam sheet.
CNC turning

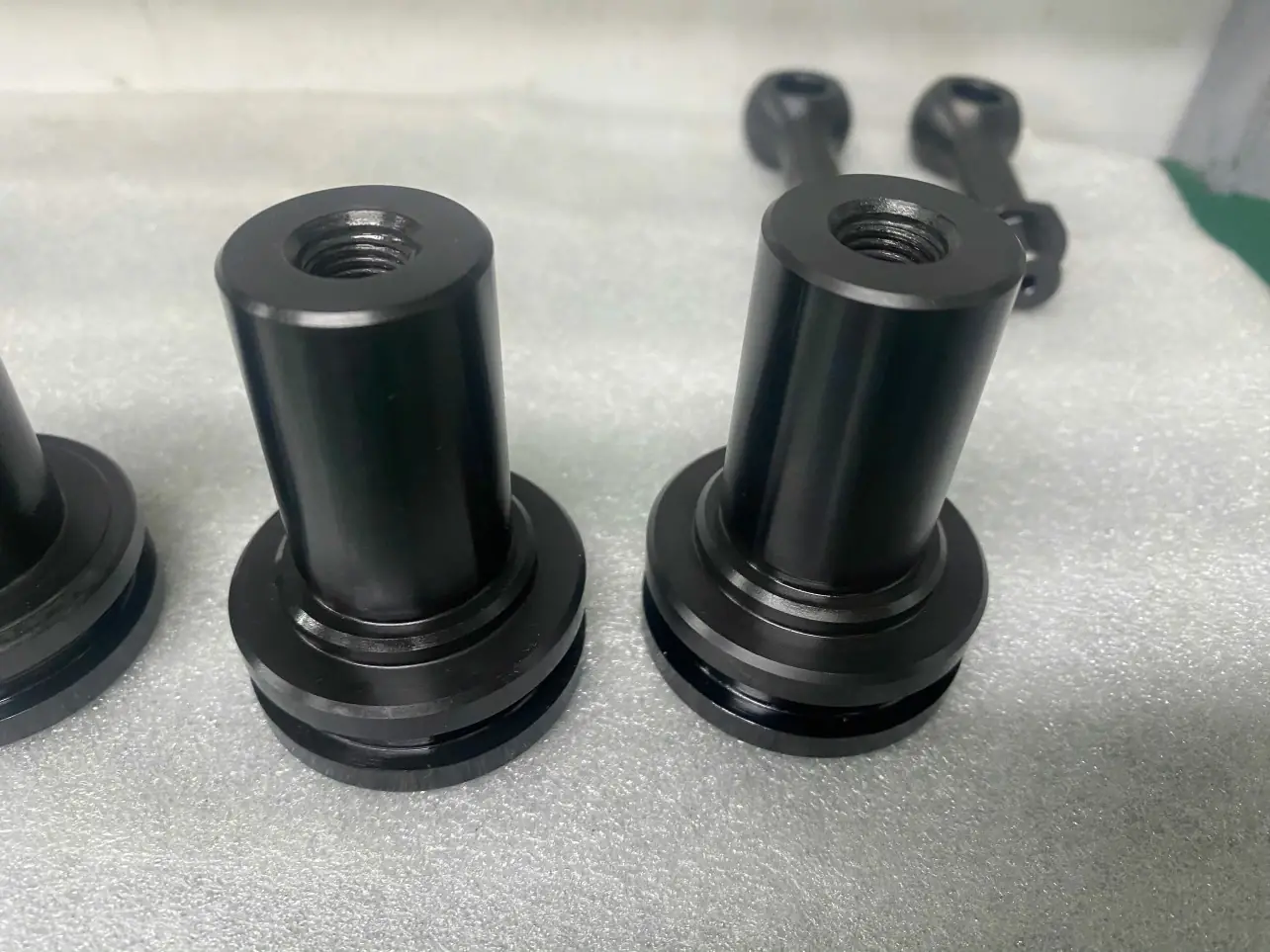

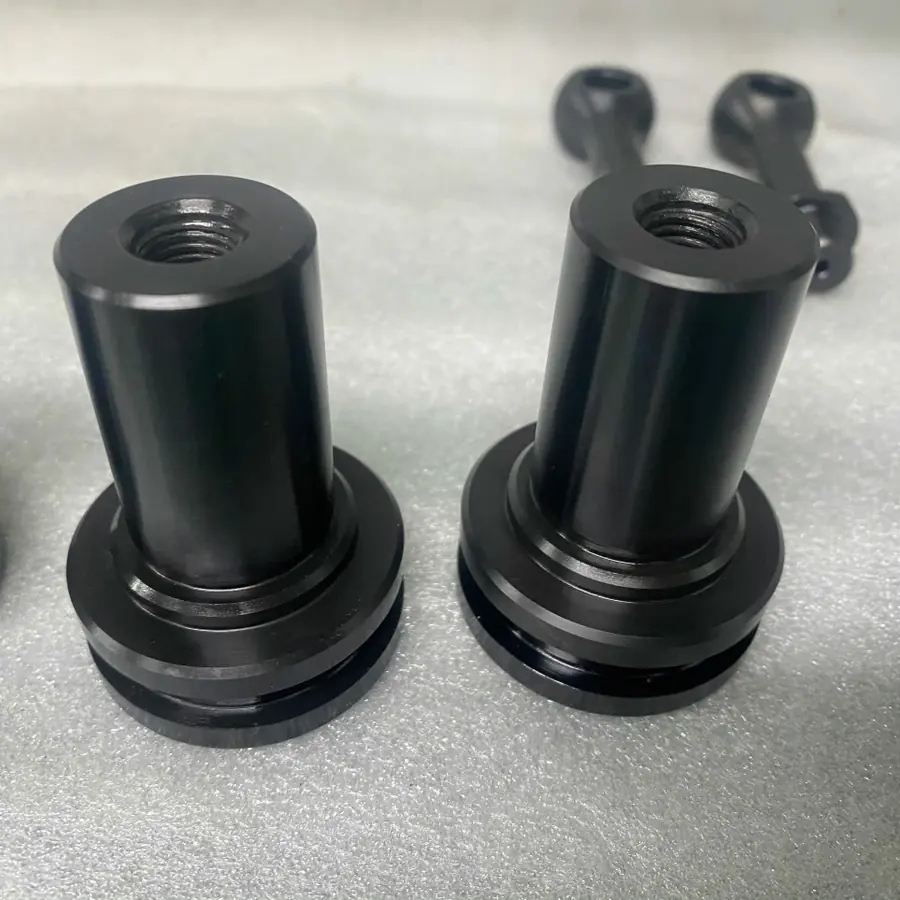

Black stepped spacers, internal thread
Stepped spacers | Internal thread in top face, flanged base, groove below flange | Black finish.

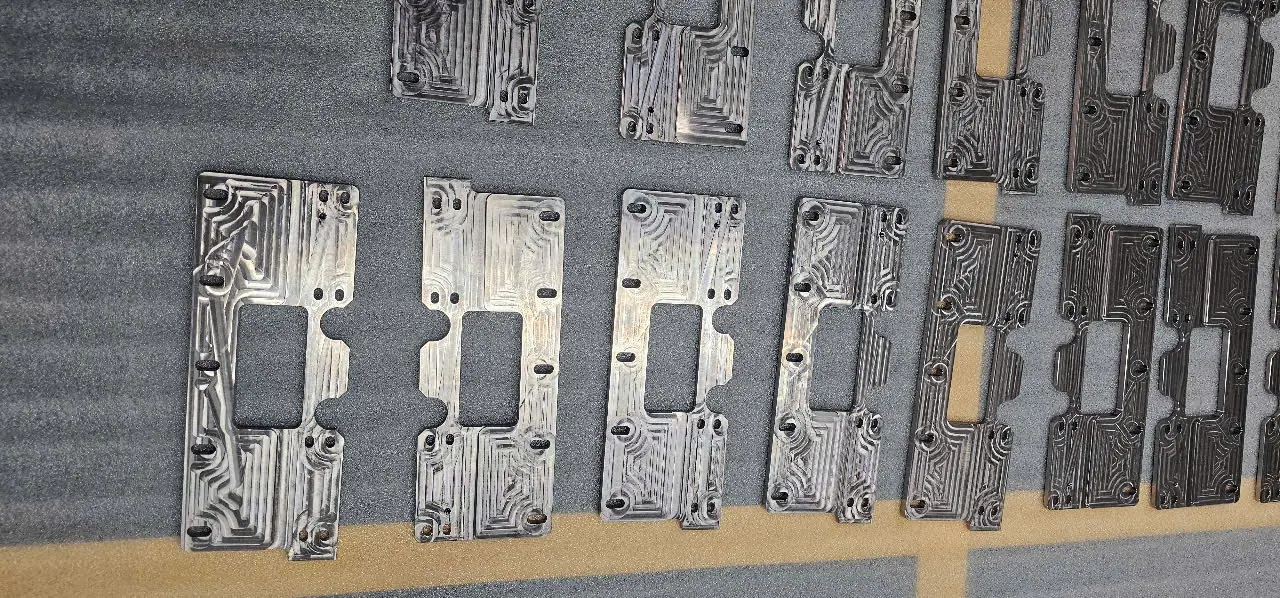

CNC milling
Milled plates with channel pattern
Milled plates | Narrow channels, rectangular window, counterbored mounting holes | Two surface finishes.

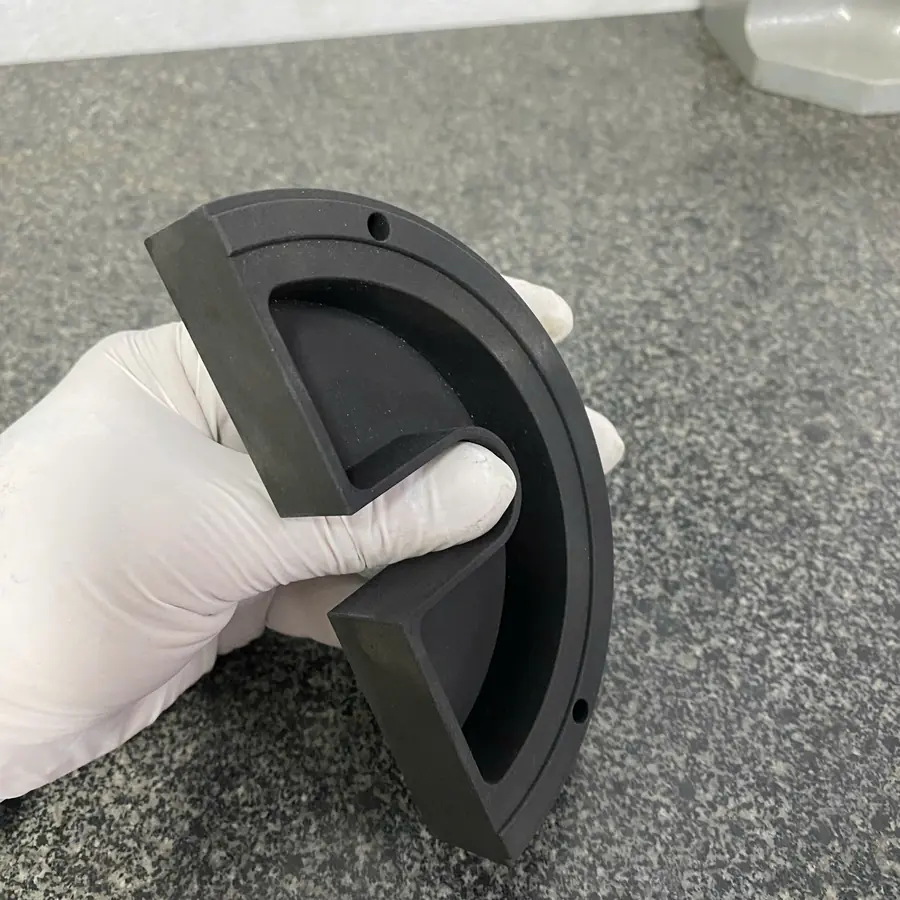

CNC milling

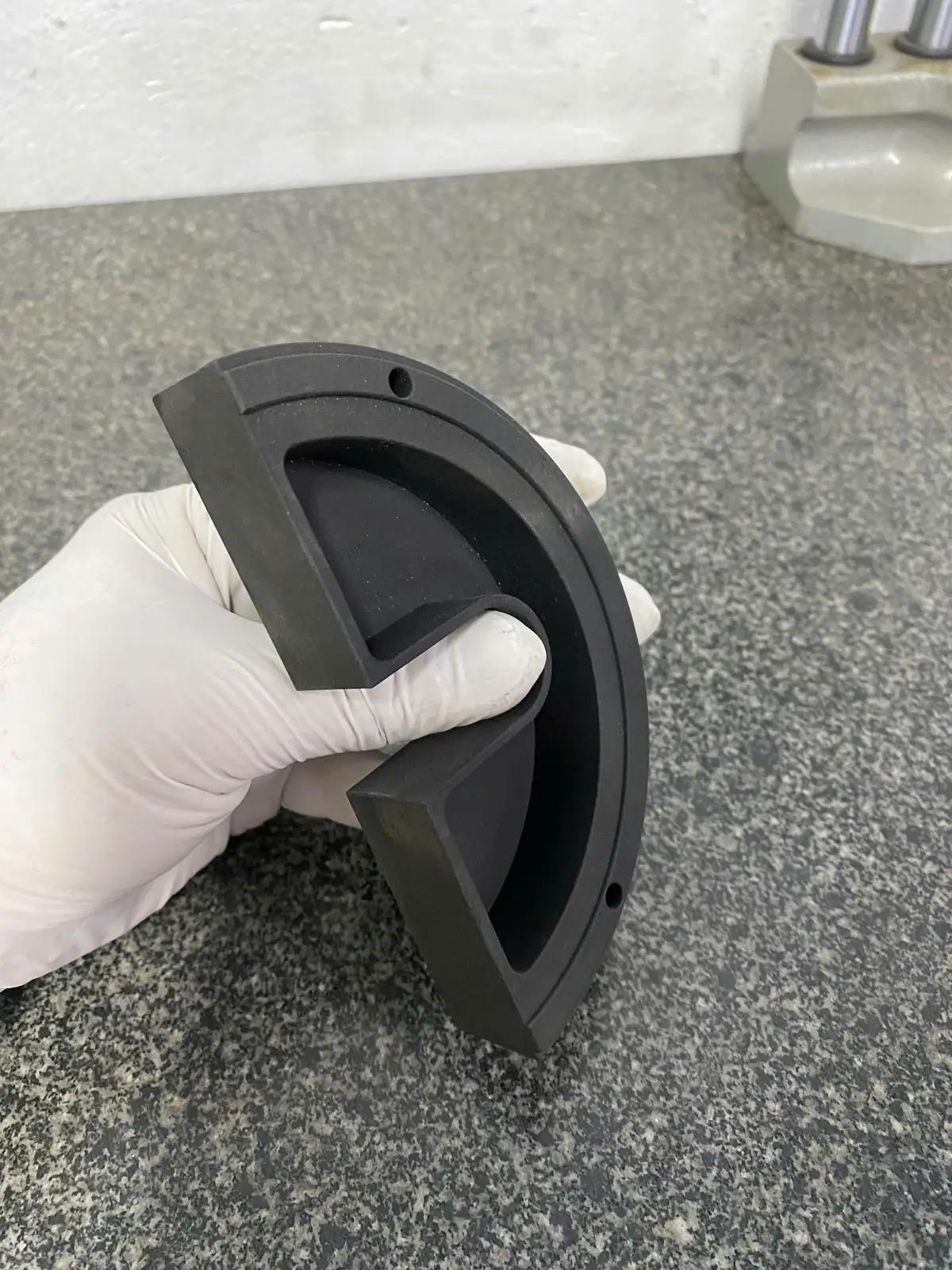

Black half-round cover, pocketed
Half-round cover | Deep pocket, stepped rim, holes at both ends | Checked on granite surface plate.

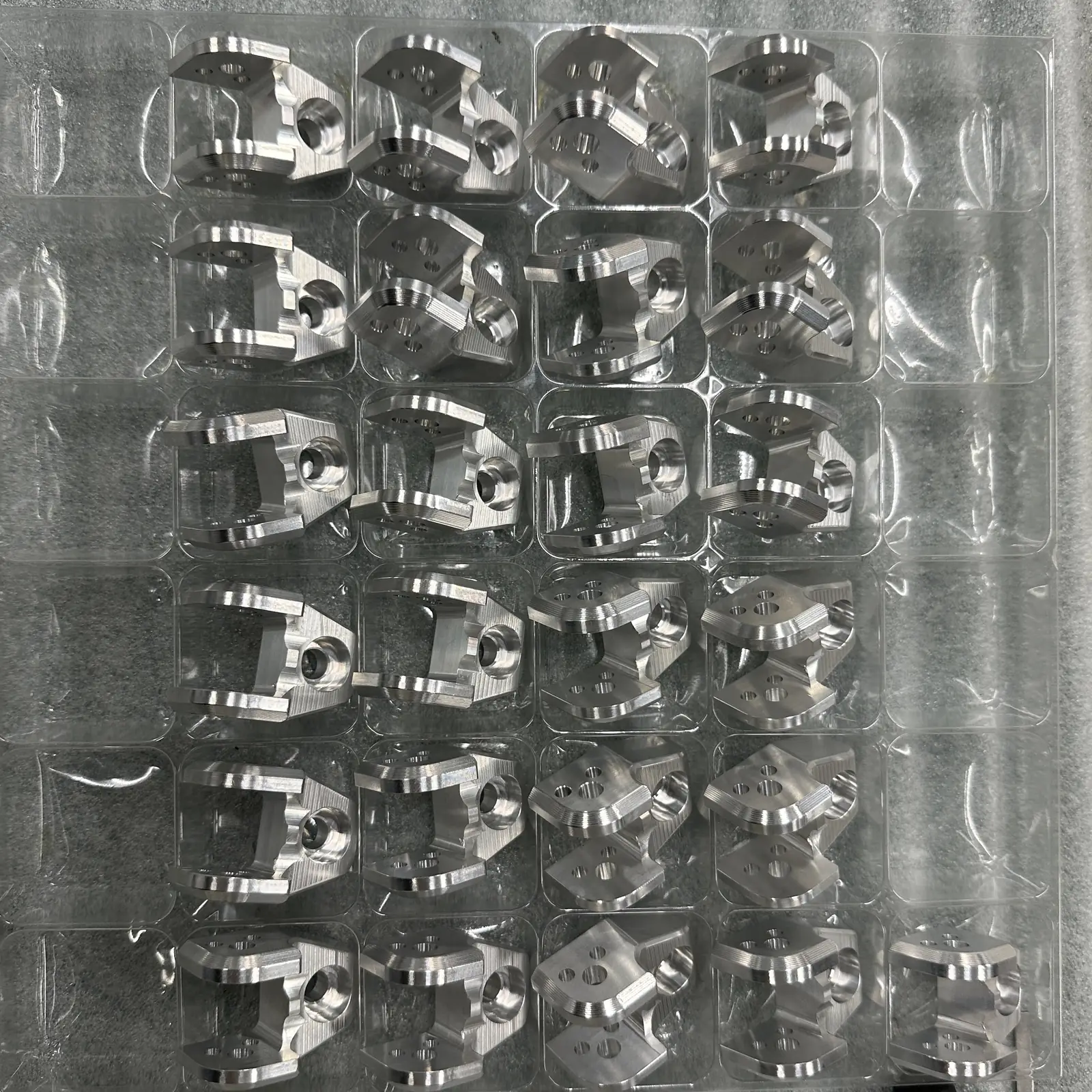

CNC milling
Milled brackets, tray packed
CNC milled brackets | Bored ears, angled faces | Thermoformed tray, one part per cell.

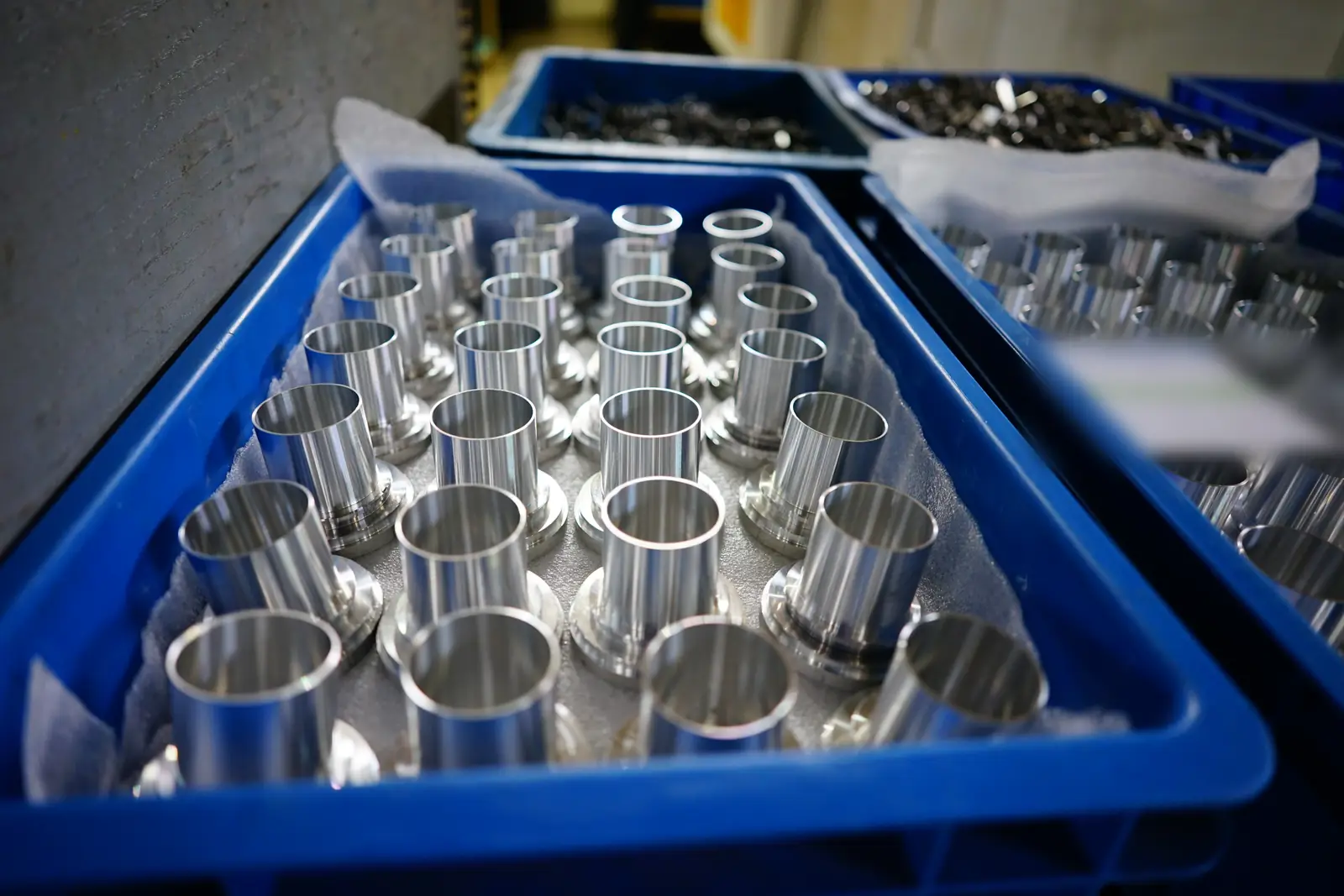

CNC turning

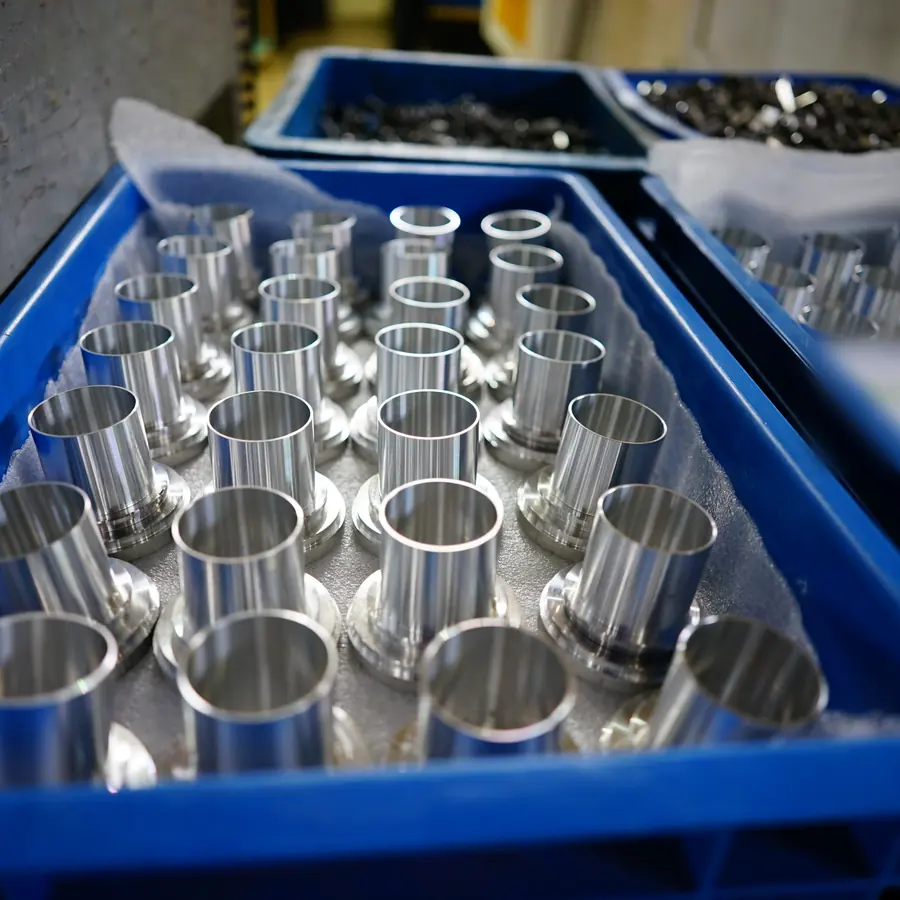

Flanged sleeves, batch in inspection trays
Thin-wall sleeves | Base flange, bore and outside diameter CNC turned | Divided tray with foam lining.
CNC turning

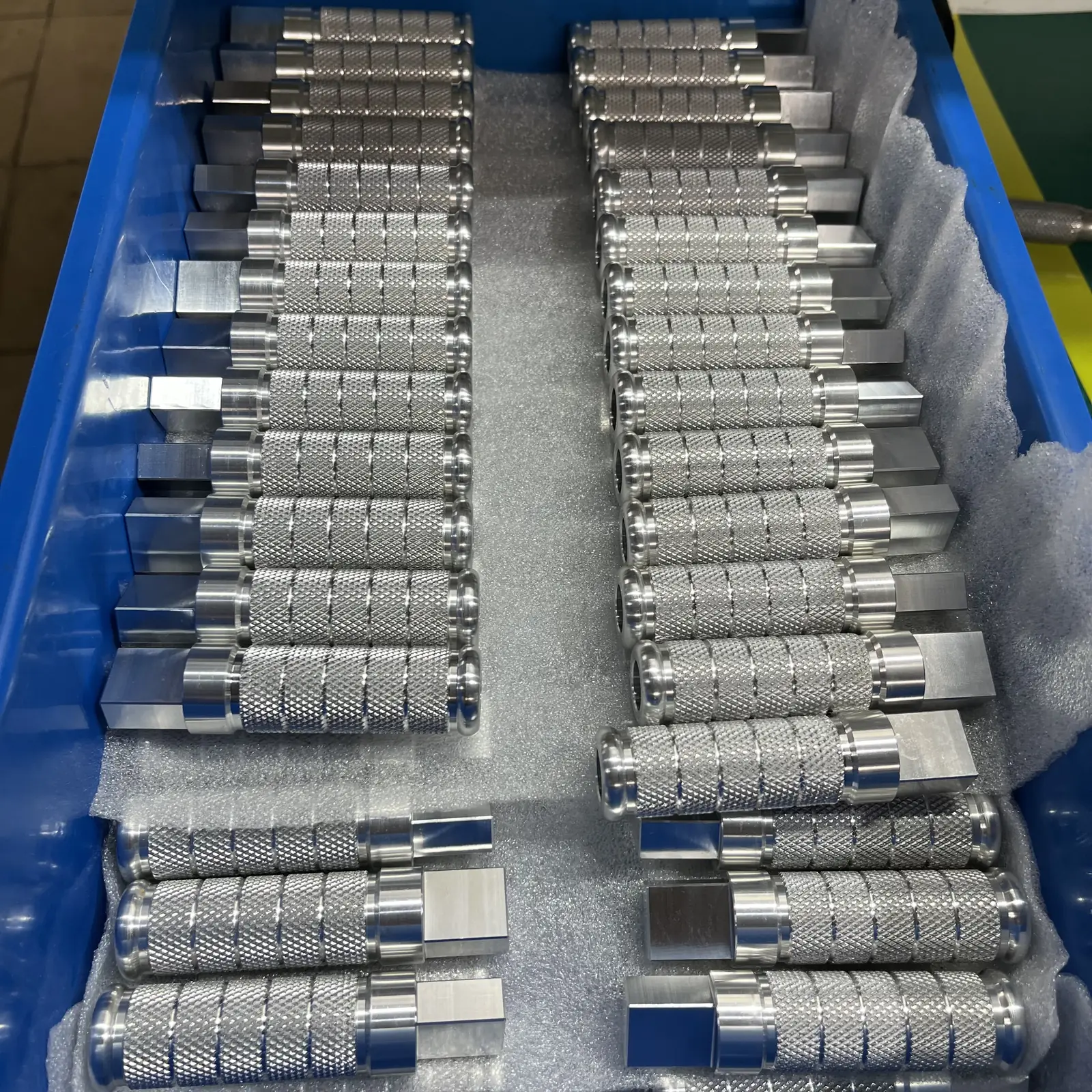

Knurled handles, milled square end
Handles | Diamond knurl, dividing grooves, rounded end and milled square end | Turning and milling.

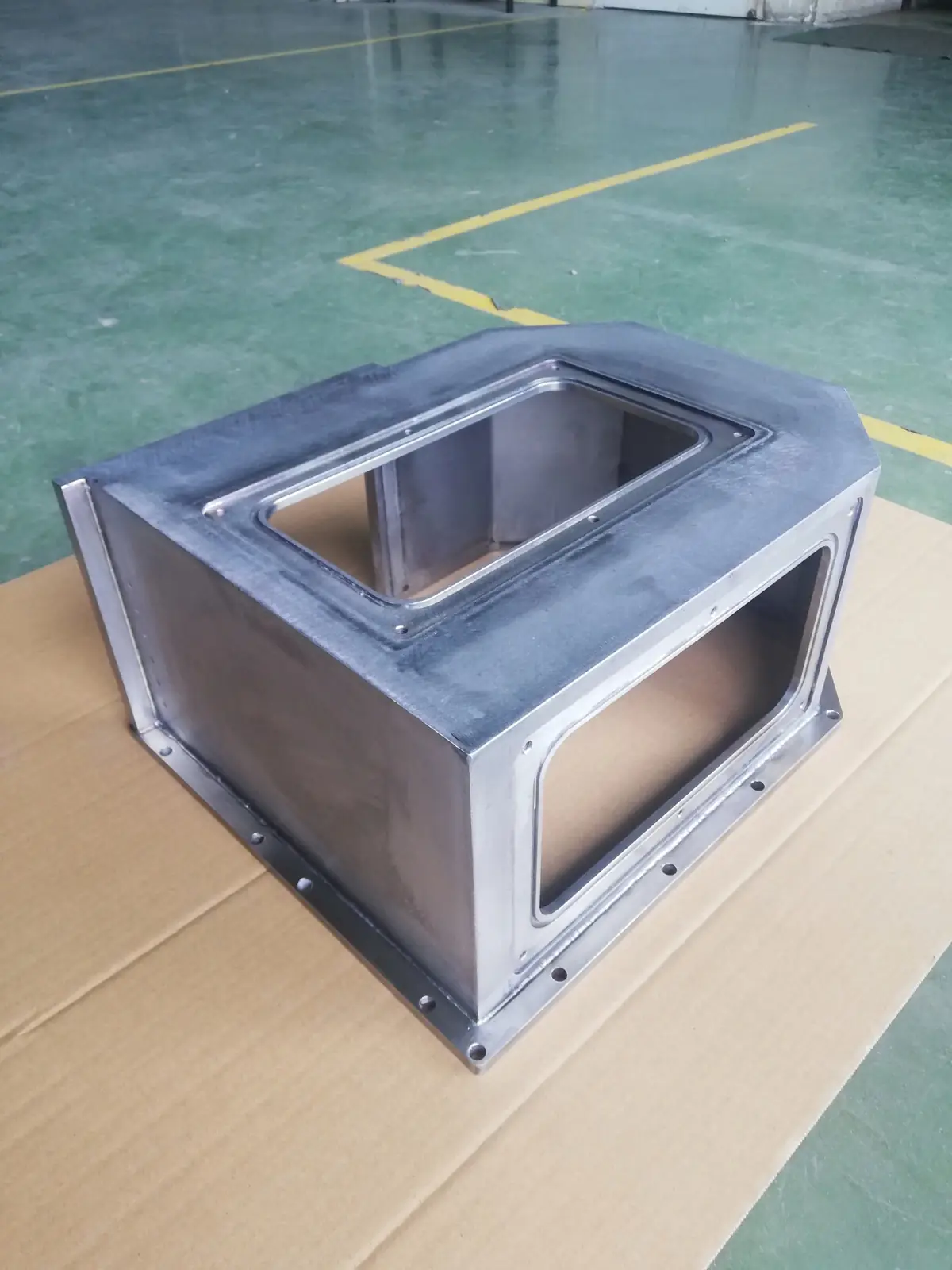

Welding & sheet metal

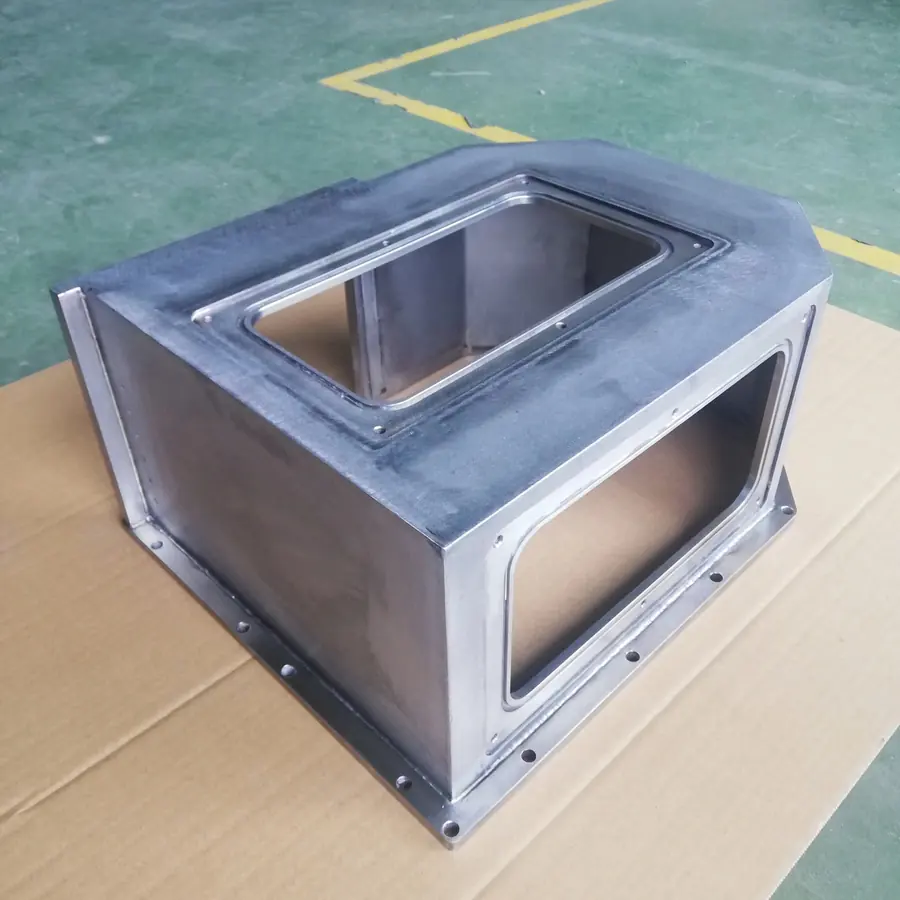

Welded housing, machined window frames
Welded plate housing | Top window and side window | Window frames and top face machined after welding | Mounting holes around base flange.
Welding & sheet metal

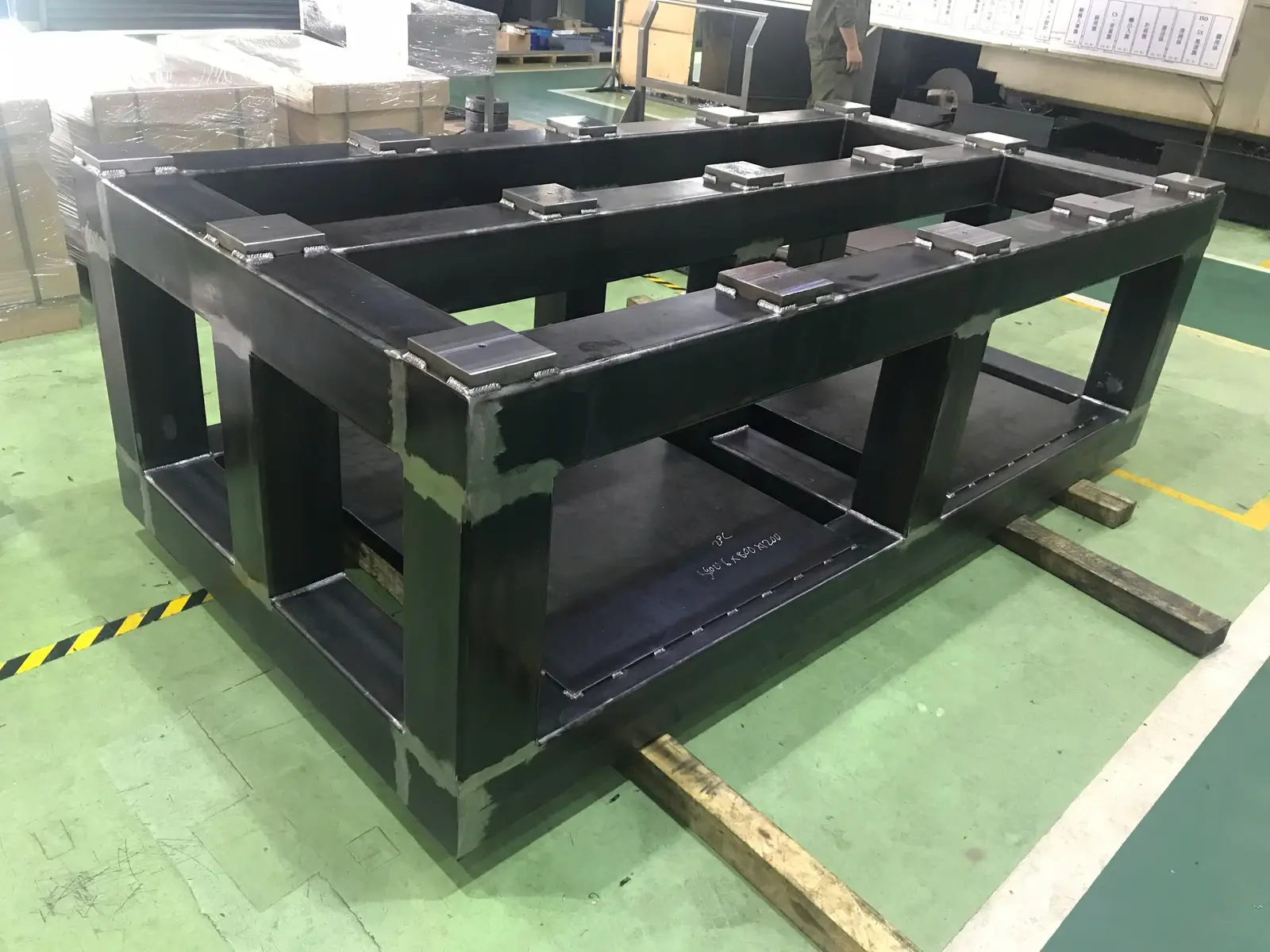

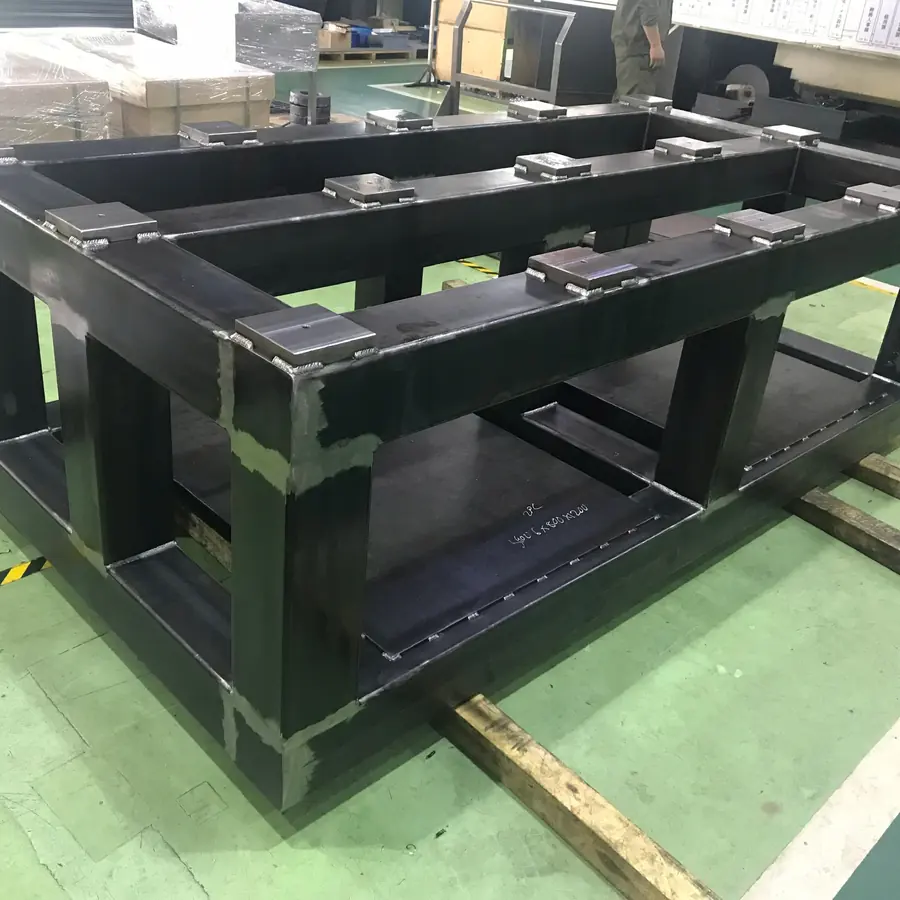

Welded machine frame, machined pads
Machine frame | Welded box section, floor plate, mounting pads | Pads machined after welding.
Welding & sheet metal

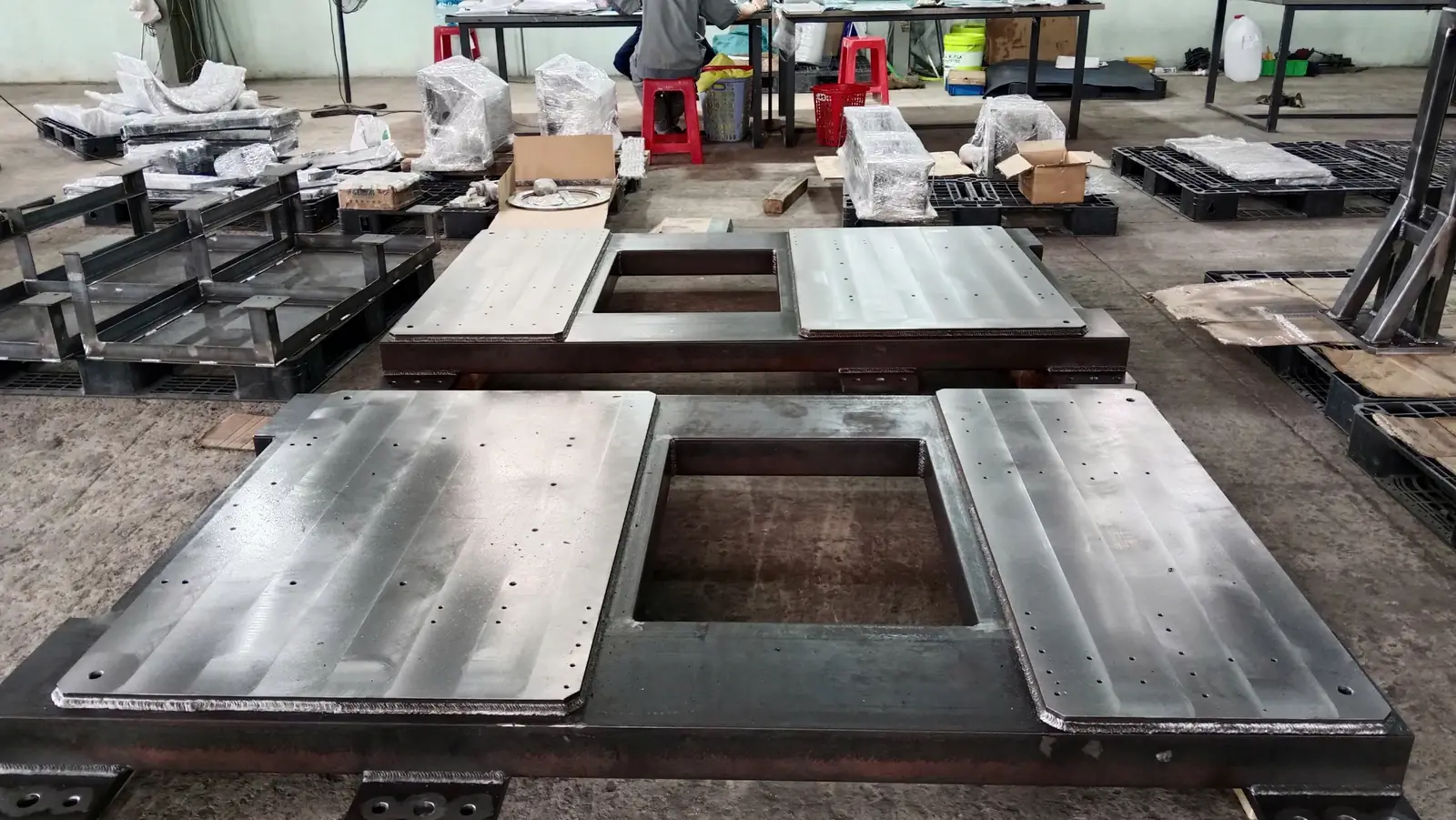

Large welded bases, machined top plates
Welded bases | Central opening, thick top plate | Face milling and mounting holes drilled.
Screws & pins

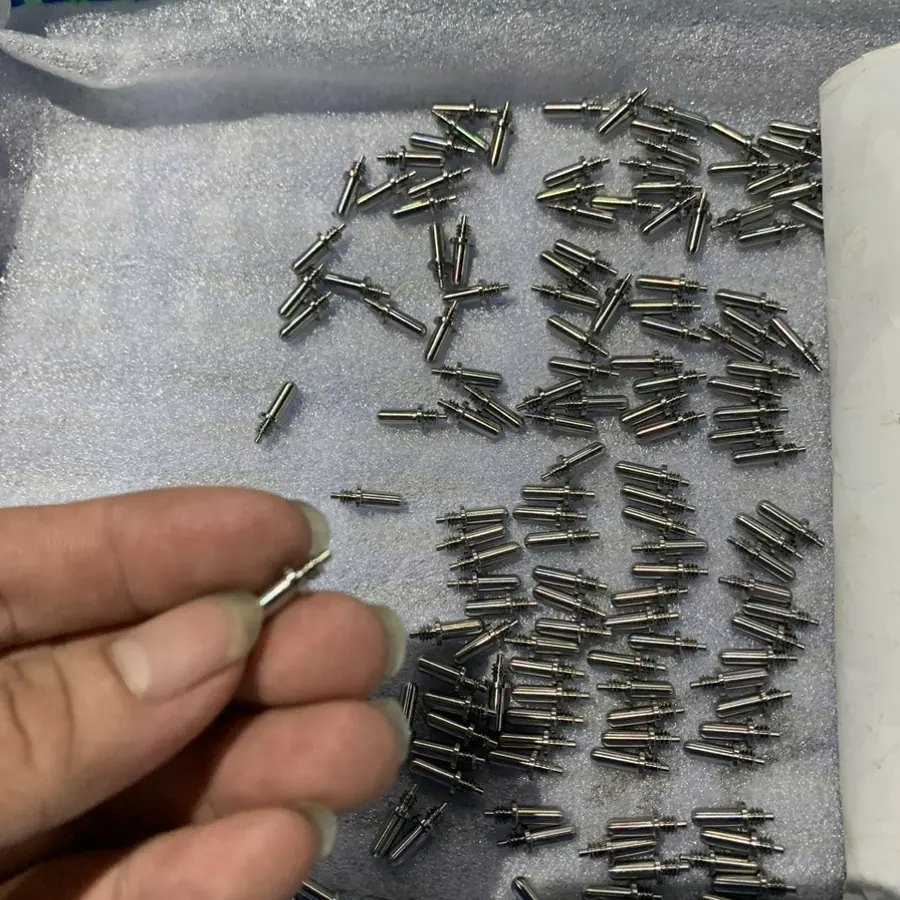

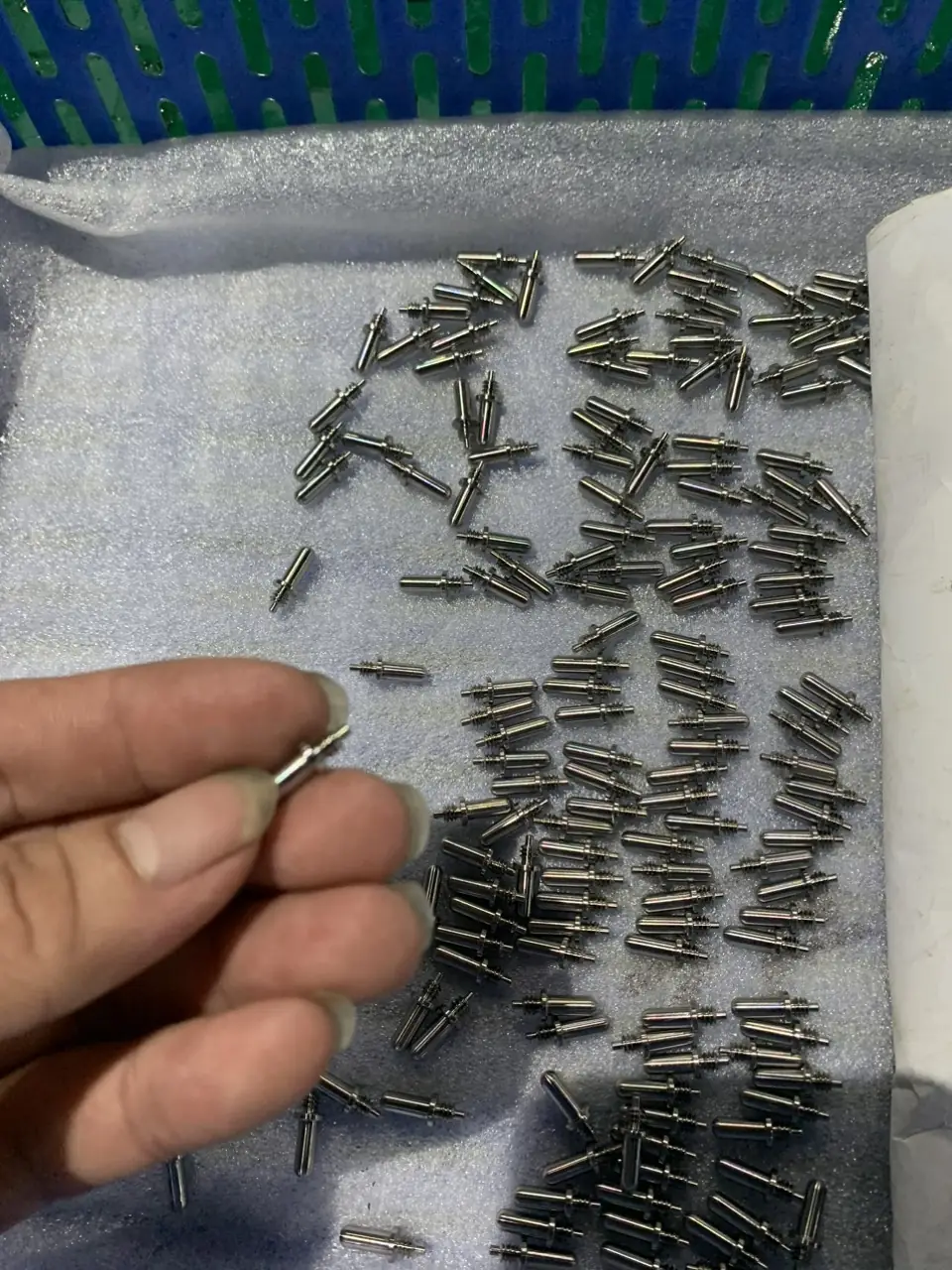

Small pins with collar
Small pins | CNC turned; collar and tapered tip | Batch of several hundred parts.
Welding & sheet metal

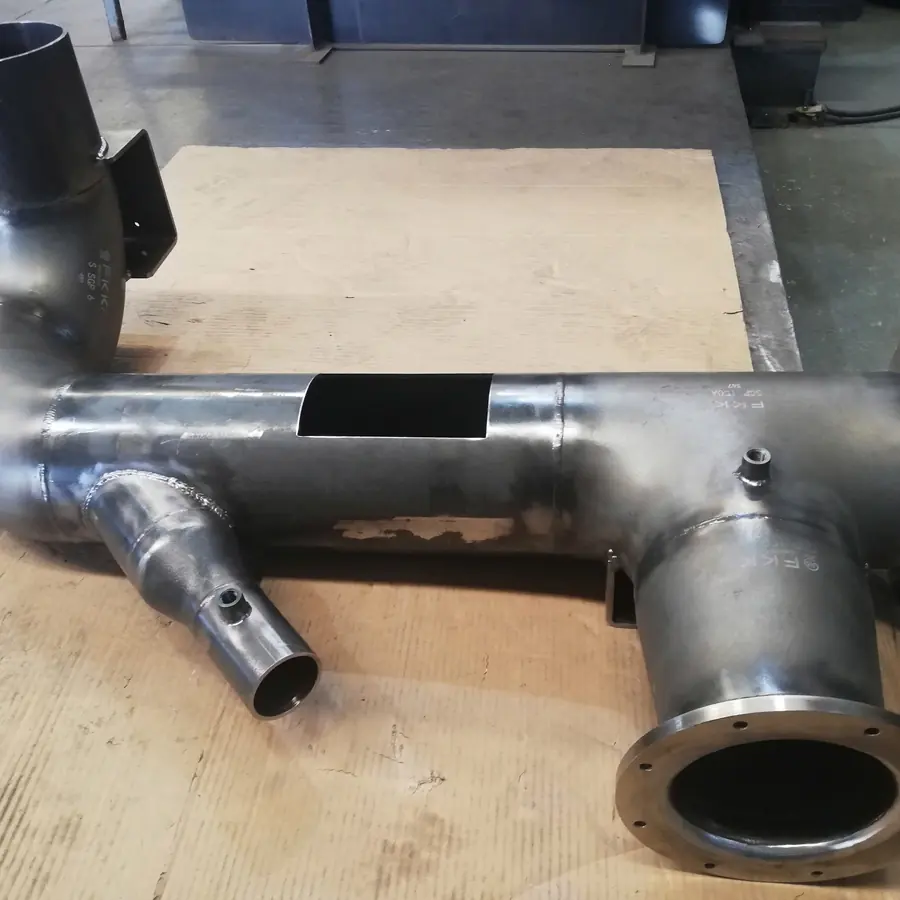

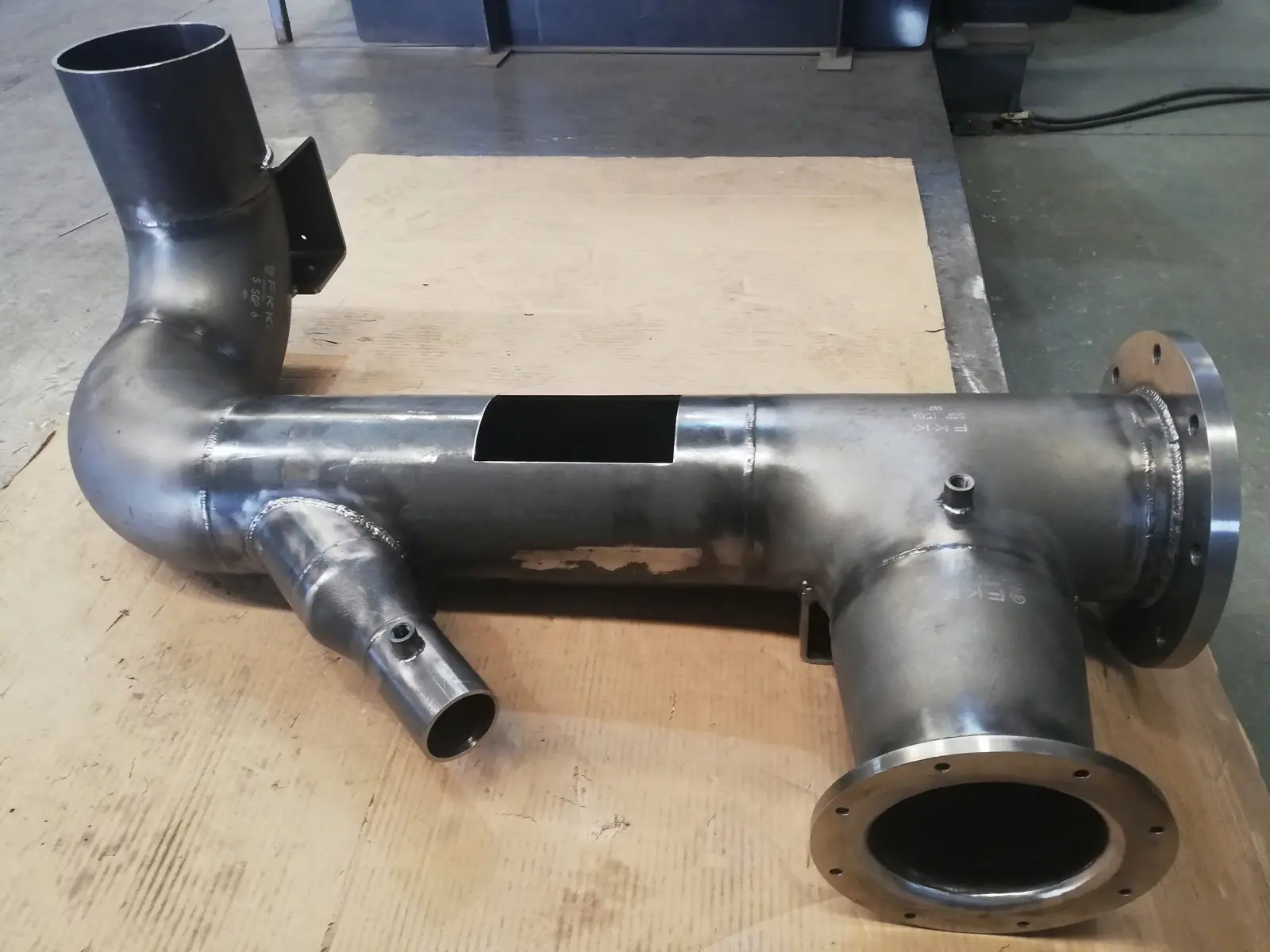

Welded pipe spool with flanges
Pipe spool | Straight pipe, elbow, reducer, tee, flanges and threaded ports | Butt welded; flange faces machined.
Welding & sheet metal

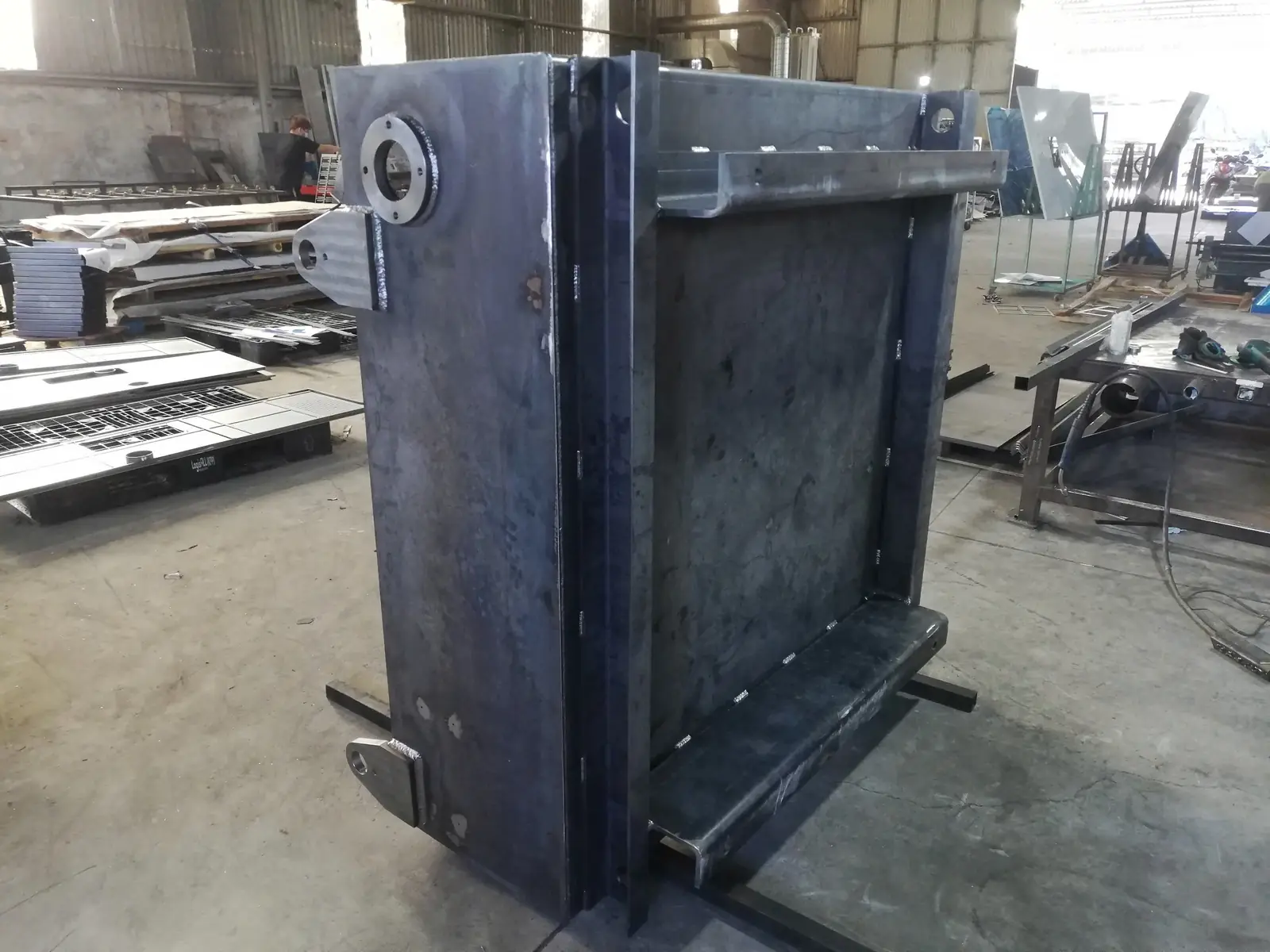

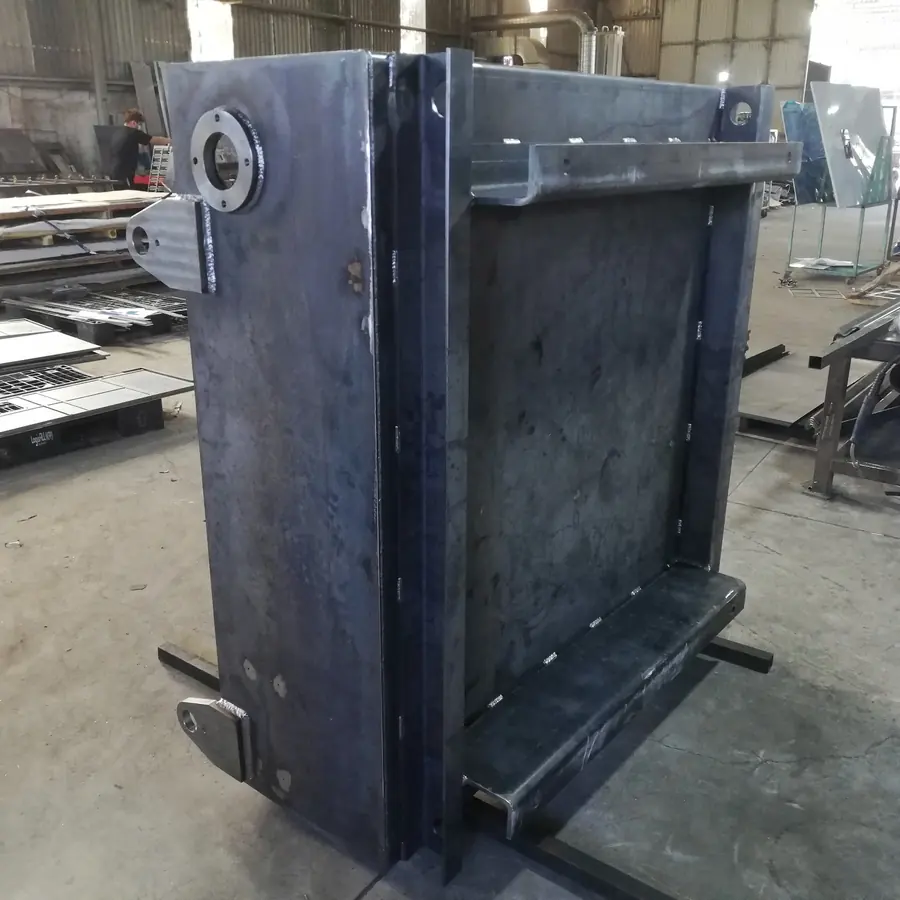

Welded frame with bearing mount
Welded plate frame | Side panel, bearing ring, drilled lug brackets | Stitch welding on inner panel.
